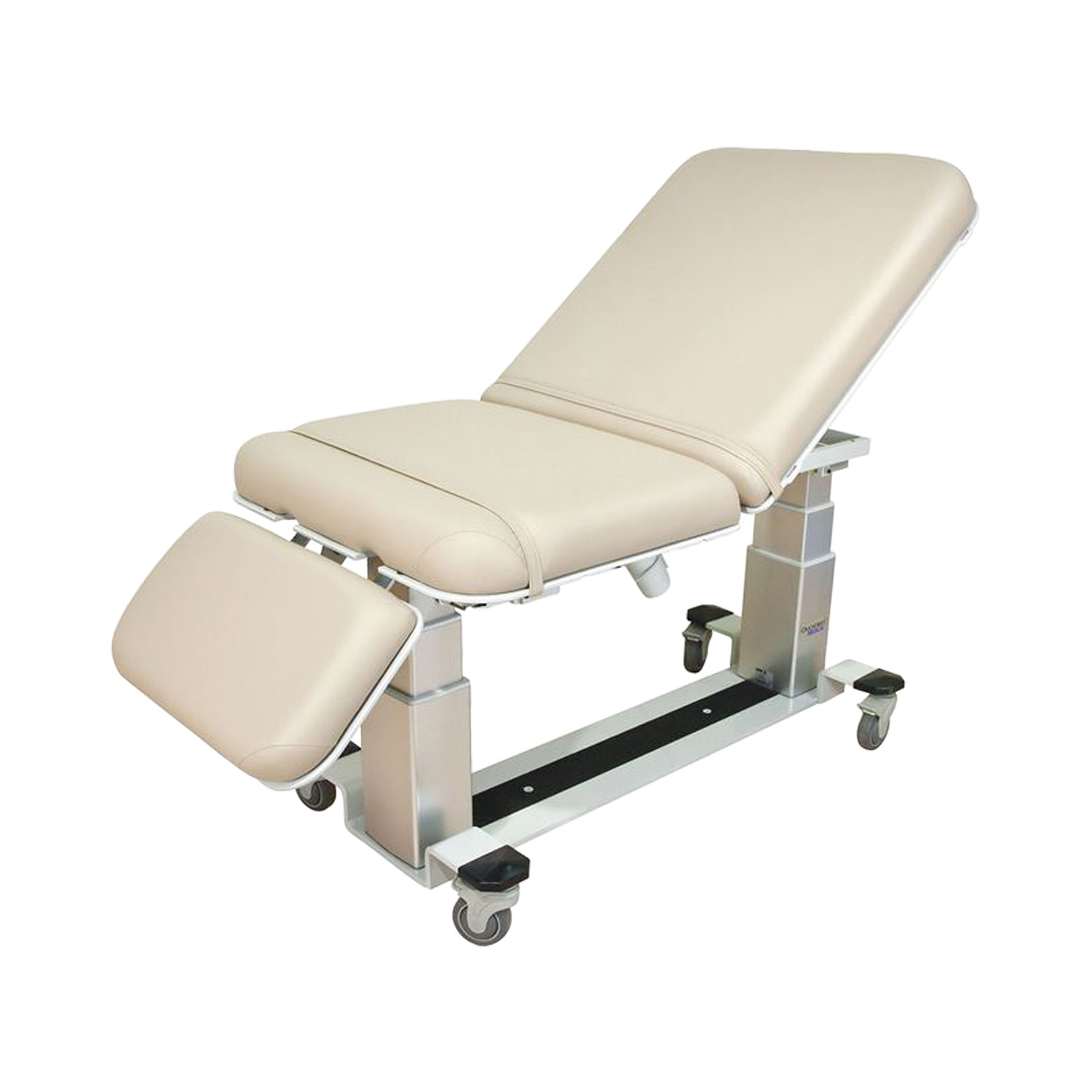

Oakworks General 3 Section Top Ultrasound Table
Oakworks General 3 Section Top Ultrasound Table
0 item is in your cart. View cart now
All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.
Details
The Oakworks General 3 Section Top Ultrasound Table is a customizable table with sleek base design that easily converts to an upright chair. With electric height adjustment, backrest and Trendelenburg, the table is an asset to any facility. Clinicians can also choose from a wide variety of accessories to customize the Oakworks General 3 Section Top Ultrasound Table for their specific needs.
Features
- Multi-purpose table ideal for: OB/GYN exams, vascular exams, biopsies and musculoskeletal exams.
- Four-position leg section can be adjusted manually from 90 degrees to horizontal.
- Electric movements include: height, backrest, Trendelenburg.
- Table height adjusts from 22 to 38 inches, for safe wheelchair transfer and ergonomic working heights.
- Electric Trendelenburg and reverse tilt for increased physician access.
- Backrest adjusts zero to 75 degrees.
- Dual tower design for added strength and rigidity, allowing 600-pound lift capacity. Bariatric rated.
- Includes locking casters, paper roll holder.
- FDA Listed, ETL Approved, CE Marked.
Optional Accessories
- Central Base Locking System
- Side Rails (2)
- Stirrups
- Sliding Cardio Panel
- Foot Control (H, F, T)
- Detachable Arm Board
- Accessory Mounting Plate (Fowler End Only)
- Table Extender - 12" L × same width as table
- For a complete list of accessories, speak with your Med Vest Technology representative today.
Specifications
Physical
- 3 Section Top: 27 in (69 cm) or 30 in (76 cm) W x 72 in (183 cm) L
- Backrest: 34 in (86 cm) L
- Seat: 24 in (61 cm) L
- Leg Rest: 13 in (33 cm) L
- Weight Capacity: 550 lbs (250 kg)
- Table Weight: 359 lbs (163 kg)
- Padding: 3 in (8 cm) Comfort Foam™
- Fabric: Premium, PVC-free TerraTouch™
Chair Movements
- Electric Height Range: 22 in - 38 in (56 - 97 cm)
- Electric Trendelenburg / Reverse Tilt: ± 15°
- Electric Fowler Backrest: 0 - 75°
- Manual 4 position Leg Rest: 0 - 90°
