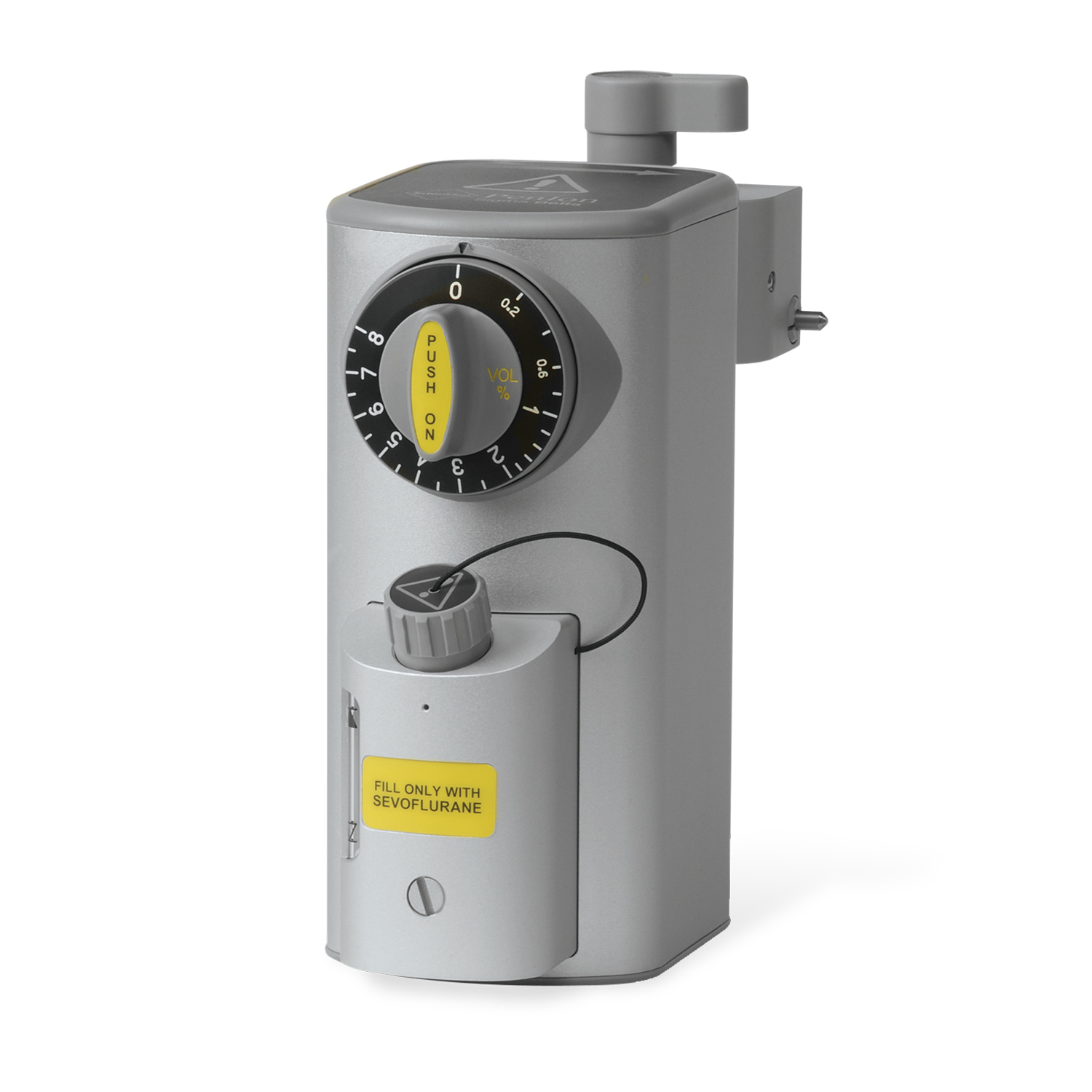

Penlon Sigma Delta Anesthetic Vaporizer
Penlon Sigma Delta Anesthetic Vaporizer
All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.
Details
Penlon Sigma Delta Anesthetic Vaporizers offer internationally recognized performance and value.
Penlon Sigma Delta vaporizers are available in a variety of agent and mounting options from Med Vest Technology. Their signature, long-lasting design offers clinicians peace of mind at an economical price point. For more information, contact an Med Vest Technology representative today.
Features
- Anesthetic vaporizer offers excellent performance, especially with low flows.
- Internationally recognized, award-winning design.
- Multiple agent filler block options: Sevoflurane, Isoflurane, Halothane and Enflurane.
- Four back-bar mounting systems: Selectatec®, Dräger Plug-In®, North American Dräger, and Cagemount.
- Low body weight for easy use.
- Service-free vaporizer designed for years of regular use with without preventive maintenance services
- Key fill or pour fill models available — ask your Med Vest Technology Representative for details!
Specifications
Physical Weight & Dimensions
- Weight: 4.8 kg approx.
- Cagemount Dimensions: (mm) 133 wide × 158 deep × 219 high
- Selectatec® Compatible: with Interlock Dimensions (mm) 120 wide × 190 deep × 242 high
- Dräger Plug-In® Compatible: Dimensions (mm) 100 wide × 190 deep × 242 high
Performance
- Capacity Volume: at MAX mark 250 mL nominal
- Volume at MIN mark: 35 ±10 mL – Note After draining, approximately 60 ±10 mL of liquid is retained by the wick
- Flow Range: Operating flow range 0.2 to 15 litres/min
- Temperature Range: Operating temperature range 15° to 35°C (58° to 95°F)
*Presumes ten year product life requiring no preventive maintenance service. It is recommended that a service is carried out at ten years. Halothane Vaporizers require a five year service.
Selectatec® is a Datex Ohmeda Trademark, Plug in® is a Dräger Trademark
