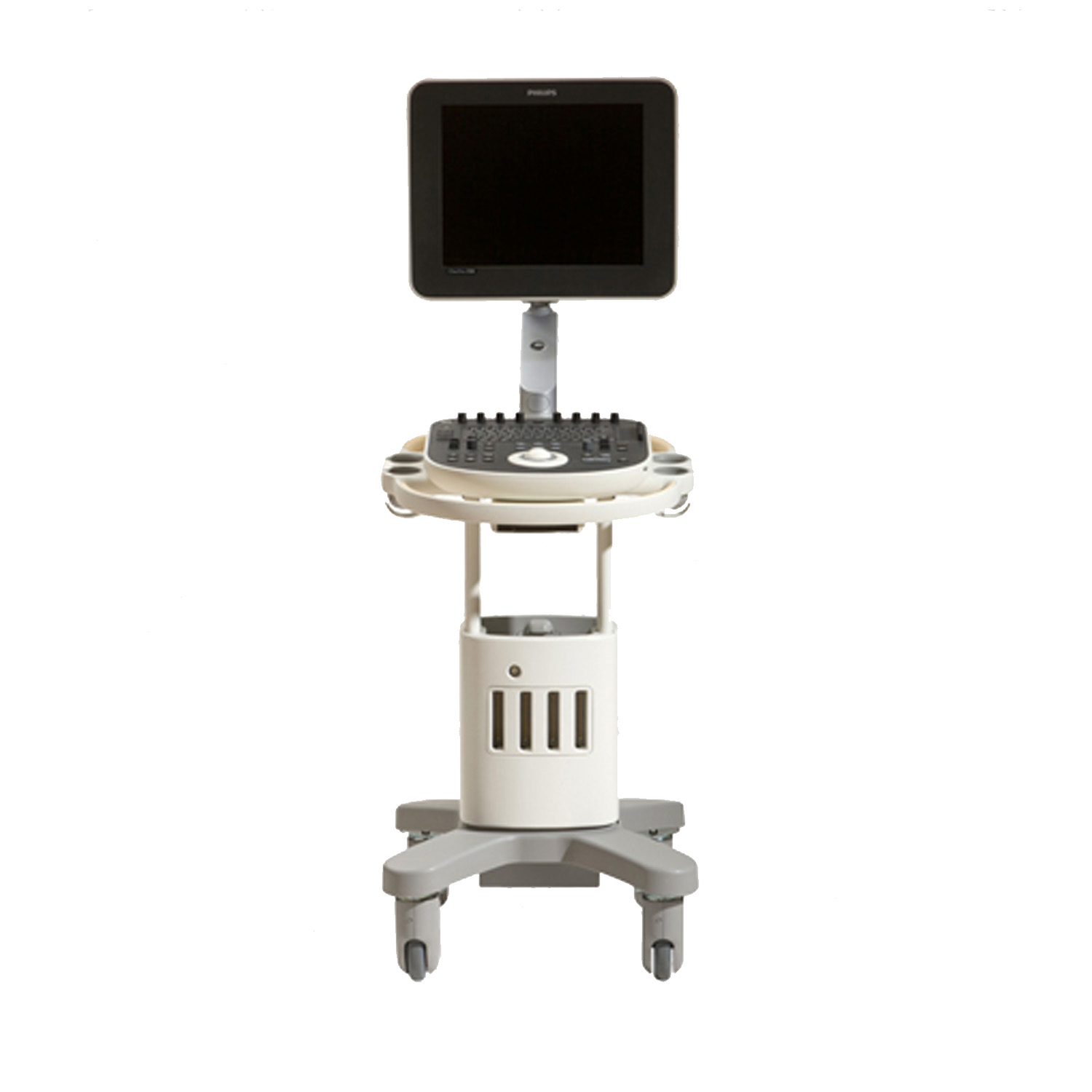

Philips Clear Vue 550 Ultrasound
Philips Clear Vue 550 Ultrasound
0 item is in your cart. View cart now
All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.
Details
The Philips Clear Vue 550 Ultrasound offers many advancements in imaging, ergonomics, and workflow providing superior value in ultrasound imaging. With Philips Active Array technology, the ClearVue 550 integrates key imaging technologies into the transducer to enable exceptional imaging performance in a lightweight, affordable platform. The Philips Clear Vue 550 Ultrasound is the perfect imaging system for any medical environment.
For more information about the Philips Clear Vue 550 Ultrasound, contact a Med Vest Technology Representative today.
Features
- Philips Active Array technology for superb images to enhance diagnostic confidence
- 17-inch fold-down LCD monitor on fully articulating, tilt and swivel arm
- Cable management hooks
- Storage tray
- EKG plug allows for electrocardiograms
- Simplified interface through in-context back-lighting
- Wrap-around handle & four-way swivel wheels allow for easy movement
- USB flash port
- Four transducer ports
- DVD/CD write and read capabilities
- Integrated footrest
Specifications
System architecture
- Acquisition frame rate: greater than 1128 frames per second in high frame rate mode
- All-digital broadband beamformer
- Microfine 2D focusing with dynamic focal tuning
Applications
- Abdominal
- Small parts and superficial
- Musculoskeletal
- Urology and prostate
- Obstetrical
- Gynecological and fertility
- Vascular – Cerebrovascular – Peripheral vascular
- Transcranial Doppler
- Cardiac: Adult/Pediatric
Imaging Modes
- Philips Microfine 2D focusing
- Directional Color Power Angio
- Pulsed wave Doppler
- Anatomical M-mode
- Duplex for simultaneous 2D and Doppler
- Intelligent Doppler
- Trapezoidal
- Adaptive Doppler
Connectivity
- Three USB ports
- 320 GB hard drive space
- DVD/CD write and read capabilities
- Direct digital storage of system configuration backup, including user-defined presets and OB trending data, to USB or DVD/CD
- Ability to export AVI clips and BMP images to USB flash for PC viewing
Dimensions
- Depth 23.0 in/58.4cm
- Height 53.6 – 59.8 in/136.1 – 151.9cm
- Control panel height (non-adjustable) 33.0 in/83.7cm
- Width 20.5 in/52cm
- Weight 115 lb /52 kg (with printer)
Display
- 17-inch (338 x 270 mm) high-resolution color monitor
- Mounted on fully articulating arm with tilt and swivel – Tilt: -60°/+90° (fully flat) – Swivel: +/-90°
- SXGA resolution (1280 x 1024) 60 Hz, non-interlaced RGB
- In-plane switching (IPS) panel for superior viewing angle and grayscale reproduction
Power Requirements
- Power 450VA
- Power consumed 300VA
- Frequency 50 to 60 Hz
- Voltage 100 to 240 VAC
