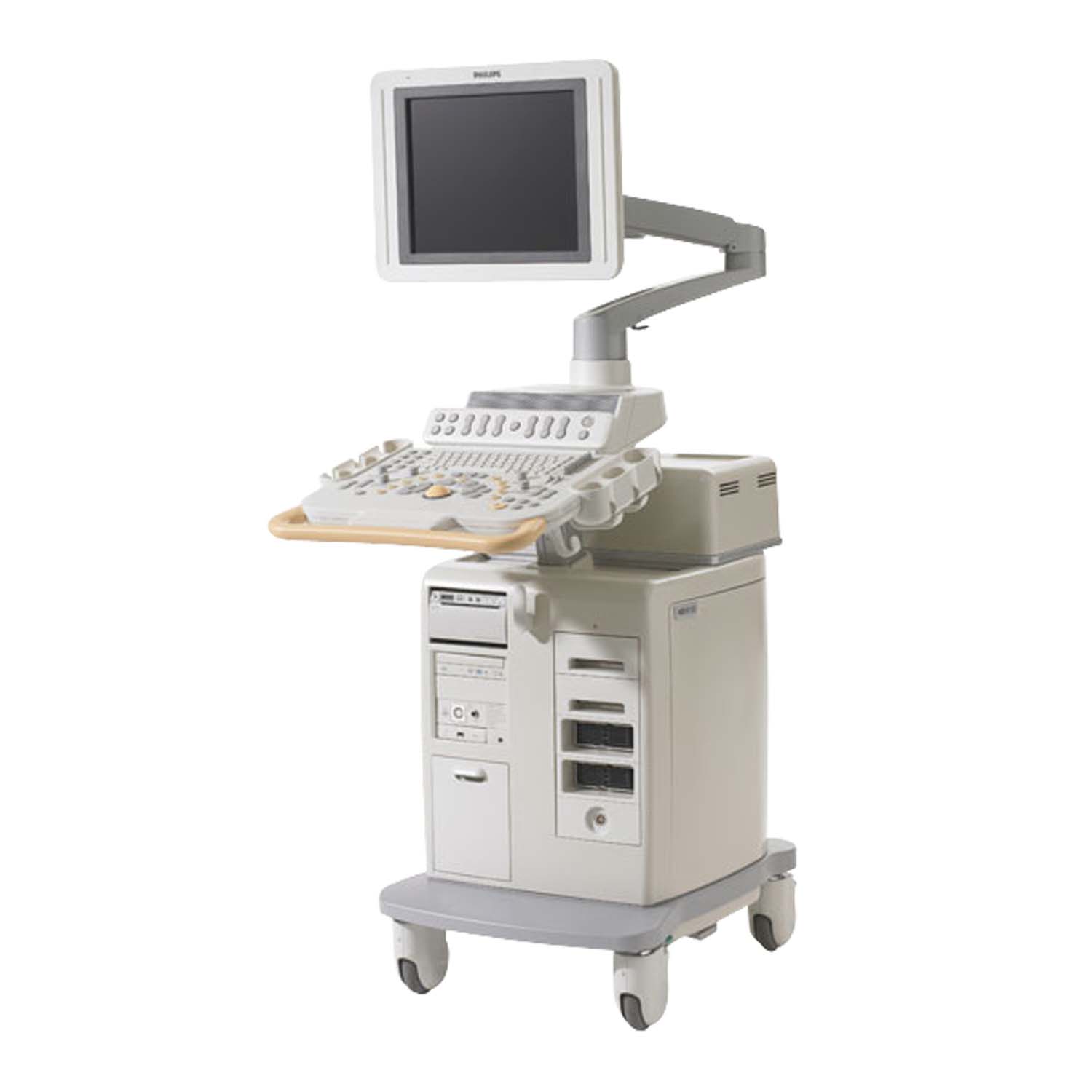

Philips HD-7XE Ultrasound

Brand: Philips

Type: Ultrasound Machines

Web ID: 11902

Condition: Brand New

View Accessories

0 item is in your cart. View cart now

Need help?

Get an Equipment Quote

(781) 302-6019

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

Details

The Philips HD-7XE Ultrasound provides medical professionals with a combination of advanced performance, efficient workflow and elegant data management. Making the HD-7XE Ultrasound an ideal solution for medical practices.

For more information about the Philips HD-7XE Ultrasound, contact a Med Vest Technology Representative today.

Features

Adjustable control panel and monitor (height and swivel)
USB flash port
Integrated multi-session CD drive
Integrated footrest
Four transducer ports
Four-way swivel wheels allow for easy movement
USB flash port
Four transducer ports
iSCAN Intelligent Optimization hard key

Specifications

Applications

Abdominal
Small parts and superficial
Pediatric
Musculoskeletal
Neonatal
Urology
Obstetrical
Gynecological and fertility
Prostate
Vascular.
Transcranial Doppler
Cardiac

Image Presentation

Up or down
Left or right
Multiple duplex image formats (1/3-2/3, 1/2-1/2, 2/3-1/3)
Depth to 30 cm (exam and transducer specific)

Imaging Modes

2D Mode
Microfine 2D Focusing
Frame rate selection
Eight-level digital reconstructed zoom with pan
Variable level high-definition zoom
Image orientation marker
Cineloop image review (up to 1,000 B/W frames)
Persistence, adjustable in real time and Cineloop review
Selectable compression curves
Sector size and steering control

Connectivity

Two USB ports
80 GB hard drive space
Standard CD-R/RW
Direct digital storage of system configuration backup, including user-defined presets and OB trending data, to USB or DVD/CD
Direct digital storage of single frame color and B/W images to internal hard disk, USB flash and compact disk

Dimensions

Depth: 40.3 in/102.4 cm
Height (adjustable): 51.8 - 58.4 in/131.5 – 148.3 cm
Control panel height (adjustable): 32.3 - 38.8 in/82 - 98.6 cm
Width: 21.6 in/55 cm
Weight: 165 lbs /75kg (no peripherals)

Power Requirements

Power: 1150VA
Power consumed: 600VA
Frequency: 50 to 60 Hz
Voltage: 100 to 240 VAC
