Details
State-of-the-art performance

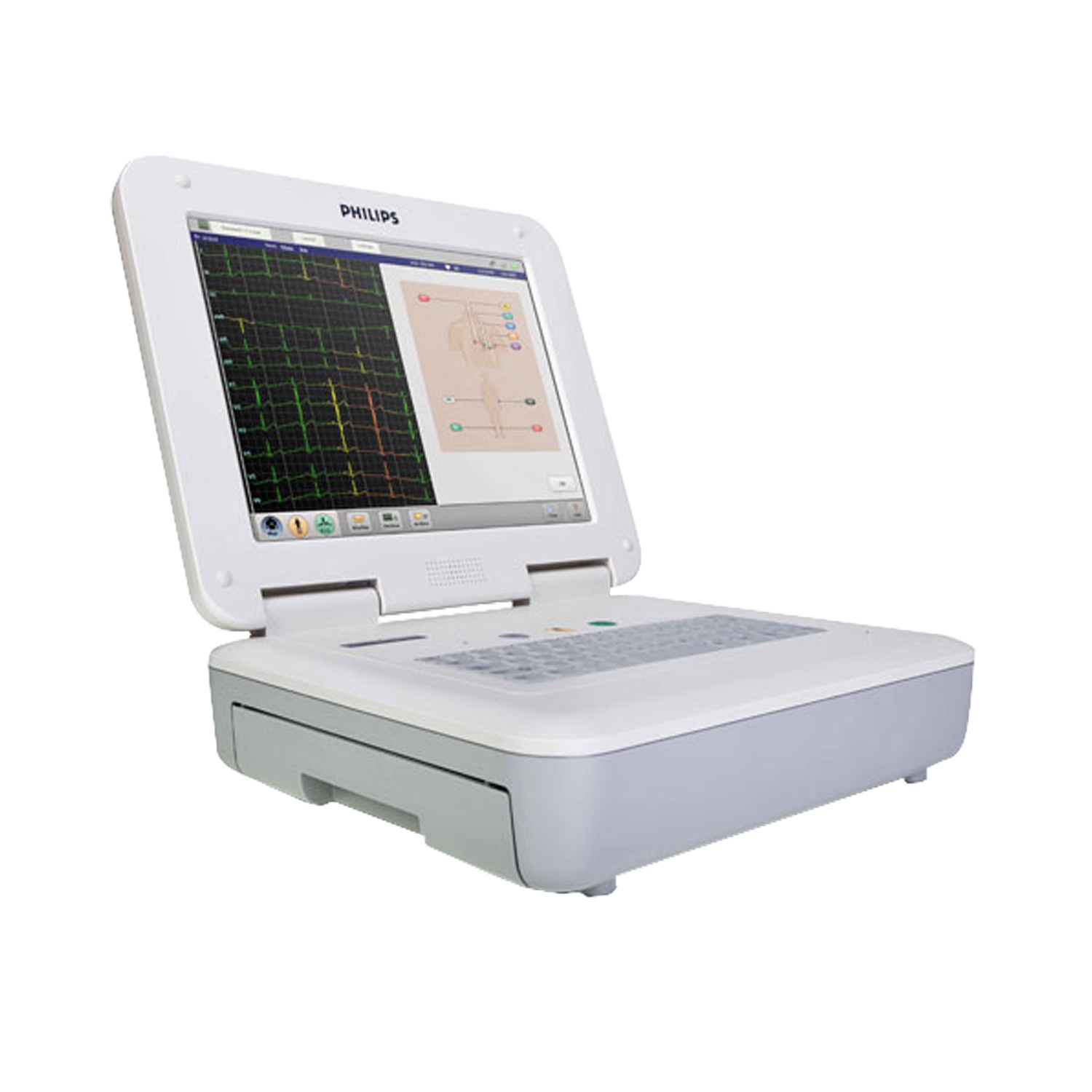

The Philips PageWriter TC70 Cardiograph is a state-of-the-art cardiograph that simplifies diagnostic ECG testing and streamlines workflow by delivering high quality clinical reports when and where you need them. The Philips PageWriter TC70 Cardiograph features an automated ECG report sequence with integrated wireless transfer of ECGs, advanced yet easy to use 1-2-3 button light directions, and the Philips DXL 16-Lead ECG Algorithm to provide industry-leading ECG interpretations.
Features:
- High-resolution 15” touchscreen.
- Simple 1-2-3 guided process for taking ECGs.
- 3-in-1 Trident lead wires minimize tangling.
- Anatomic patient interface module supports correct lead placement.
- Mark cardiac events for later review.
- Integrated interpretation on up to 16 leads.
- Advanced STEMI clinical decision support tools.
- Access previous ECGs at the bedside for immediate comparisons.
- Built in industry standard 802.11 Wi-Fi capabilities .
- Automated ECG report sequence with integrated wireless transfer.
Specifications
ECG Functions
- Simultaneous Lead Acquisition
- Full Disclosure
- Timed ECG
- Report Storage/Transfer
- Up to 18 leads
- Twenty minute history of all 16 leads and complete ECG report of any 10 seconds
- Support for pharma stress protocols
- Full fidelity at 500 Hz of all 10 sec for up to 16 leads in XML format (schema published)
Philips DXL 18-Lead ECG Algorithm
- Interpretive statements
- LeadCheck
- Borderline Statement Suppression
- Reasons
- Nomenclature
- >600 interpretive statements with integrated pediatric analysis
- Lead placement software detects 20 different lead reversals
- Three configurable settings
- Selectable explanations of all interpretive statements
- Conforms to 2007 AHA/ACC recommendations
STEMI Diagnostic Aids
- Graphical ST Vector
- Critical Values
- Two polar ST Maps in frontal and transverse planes
- Highlights 4 conditions requiring immediate clinical attention
Networked Features (requires IntelliSpace ECG)
- Central Time Management
- Orders
- Time can be synchronized to a networked time master
- Configurable rules to retrieve cardiograph-specific worklists
Signal Quality Indicators
- Leads Off Advisory
- Lead Color
- LeadCheck
- Heart Rate
- Print Preview
- Anatomical lead map displays the location and label of any loose or disconnected leads/electrodes
- Four colors to indicate levels of waveform quality
- Lead placement software detects 20 different lead reversals +J603
- Continuous display of patient heart rate
- Full screen preview of complete 16 lead report prior to printing
Training
- Application Help
- Self Paced
- Integrated graphical HELP screens for primary functions
- Computerized, interactive, dynamic animation covering all major clinical functionalities
User Interface
- Touchscreen
- Keyboard
- Display
- 1-2-3 operation/context sensitive application/5-wire resistive touchscreen
- 65 button standard full alphanumeric keyboard that supports special characters
- 15 inch TFT
Signal Processing
- Patient Interface Module
- Remote microprocessor-controlled digital module provides 5μV resolution
Pre-Processing Filters
- AC Noise
- Signal Processing
- 50 to 60 Hz
- Artifact Rejection and Baseline Wander
Presentation Filters - 10 sec Reports
- High Pass
- Low Pass
- 0.05/0.15/0.5 Hz
- 40/100/150 Hz
Presentation Filters - Rhythm
- High Pass
- 0/05/0.15 Hz
Presentation Filters - Rhythm
- Low Pass
- 40/100/150 Hz
Electrical
- Battery capacity
- Battery recharge
- AC power
- Power consumption
- Typically 50 ECGs on a single charge
- 5 hours to full capacity
- 100-240 VAC at 50/60 Hz VAC/Hz
- 75 W max W
Mechanical
- Dimensions
- Weights
- 40 x 33 x 16 cm (15.7 x 13 x 63 in) cm (in)
- 13 kg/28 lb kg/lb
Environmental
- Operating Conditions (a)
- Operating Conditions (b)
- Operating Conditions (c)
- 10°C to 40°C (50°F to 104°F) °C (°F)
- 15% to 80% relative humidity %
- Up to 4,550 m (15000 ft) m (ft)
Safety and Performance
- International Standards
- IEC 60601-1: 1988 +A1:1991 +A2:1995 General Requirement for Safety IEC 60601-1: 1988 +A1:1991 +A2:1995 General Requirement for Safety C 60601-2-51: 2003: Particular Requirements for Safety Ul 2601-1: 20031997 US General Requirements for Safety CAN/CSA-C22,2 No, 60l1-M90 51:1994 B:1996 AAMI EC111991 (R: 2001): Diagnostic Electrocardiography Devices
