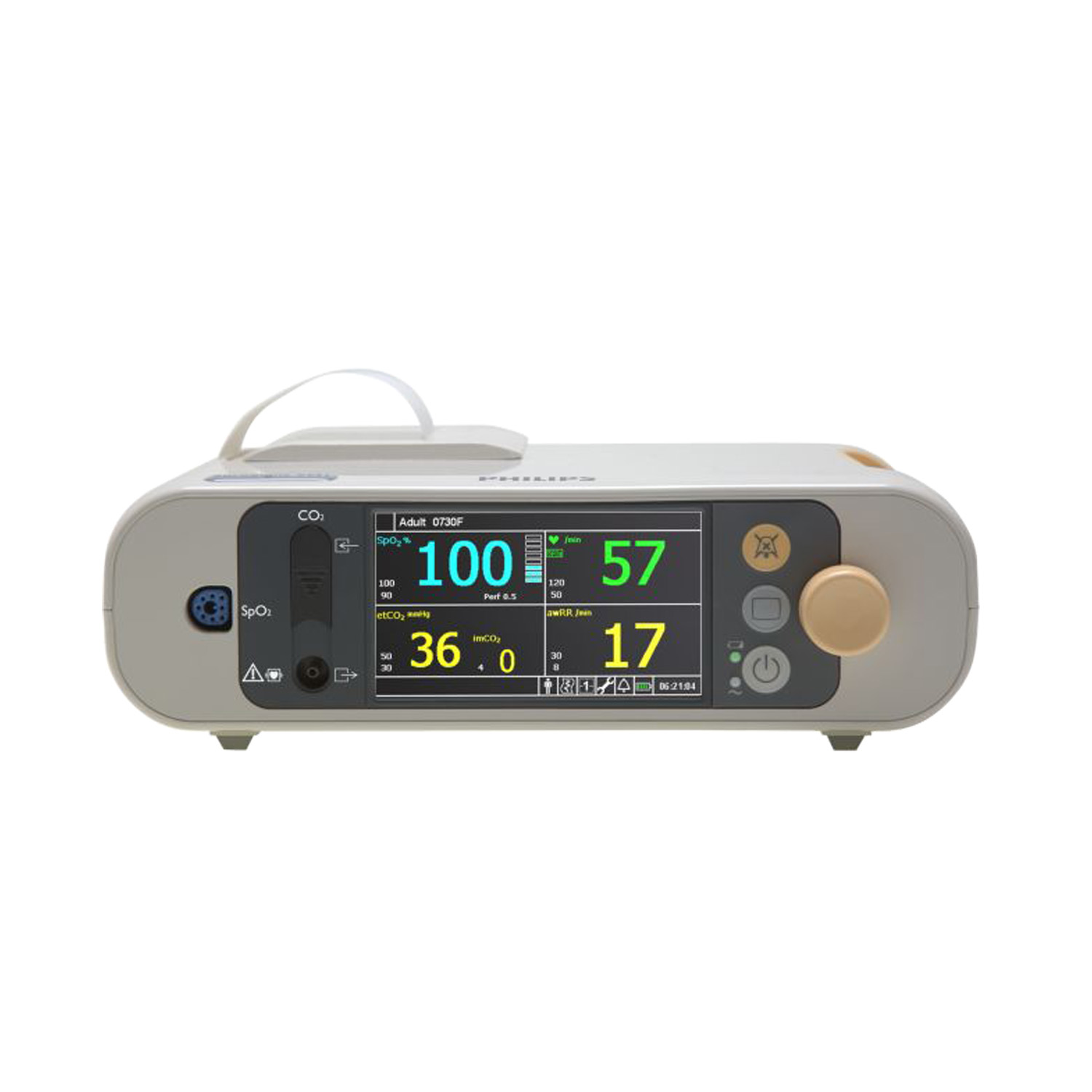

Philips SureSigns VM1 Vital Signs Monitor
Philips SureSigns VM1 Vital Signs Monitor
0 item is in your cart. View cart now
All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.
Details
The Philips SureSigns VM1 is a multi-parameter vital signs monitor designed for any care environment and suitable for adult, pediatric or neonatal use. For more information, contact an Med Vest Technology Representative today.
Features
- Multi-parameter monitor designed for adult, pediatric and neonatal patients.
- Compact design with sturdy handle for easy portability.
- Backlit, color-coded display panel for clear readings in any environment.
- Philips SpO2 technology supports sensors from industry-leading brands in adult, pediatric and neonatal configurations.
- Display panel shows SpO2 and CO2 (optional) waveforms in real time.
- Integrated barcode scanner for quick patient ID entry.
- On-board USB and LAN/serial data ports allow clinicians to easily export data.
- Optional — Microstream CO2 for intubated and non-intubated patients.
Specifications
General
- Patient Type: Adult/Pediatric/Neonatal
- Battery: Internal lithium ion 10.8 to 11.1 V. Operating time: 6 hours with continuous SpO2 measurements every 4 hours V/mAhr/hours
- Data Output: HL7 format via Ethernet port. USB port. Optional serial interface adapter
- Display Modes: large numeric display numeric and waveform display tabular trend display graphical trend display
- Recorder Type (optional): Paper width: 58mm Speed: 6.25mm, 12.5mm, 25mm, and 50mm/sec; user selectable
Dimensions
- Width: 10.2 in (26 cm)
- Height: 3.5 in (9 cm)
- Depth: 9.1 in (23 cm)
- Weight (with CO2 and recorder): 4 lbs (1.82 kg)
- Screen: WQVGA TFT-AM LCD Display | 4.3 in (10.9 cm)
Monitoring Parameters
- SPO2: Measurement Range: 0 to 100 Accuracy depends on sensor. Heart rate measurement range: 30 to 300 bpm. Heart rate accuracy ± 2% or ± 1 bpm whichever is greater. Complies with EN ISO 9919 standard %
- CO2 (optional): Microstream technology. Measurement range: 0 to 150 mmHg.Accuracy: 0 - 38 mmHg, ± 2 mmHg. 39 - 99 mmHg, ± 5% of reading (+ 0.08% for every 1 mmHg above 38 mmHg) 100 - 150 ± mmHg, ± 5% of reading (+ 0.08% for every 1 mmHg above 38 mmHg) mmHg
- Respiration Measurement: 0-150 Rpm
- Respiration Accuracy: ±1rpm in the range of 0-70rpm ±2rpm in the range of 71-120rpm ±3rpm in the range of 121-150rpm Rpm
