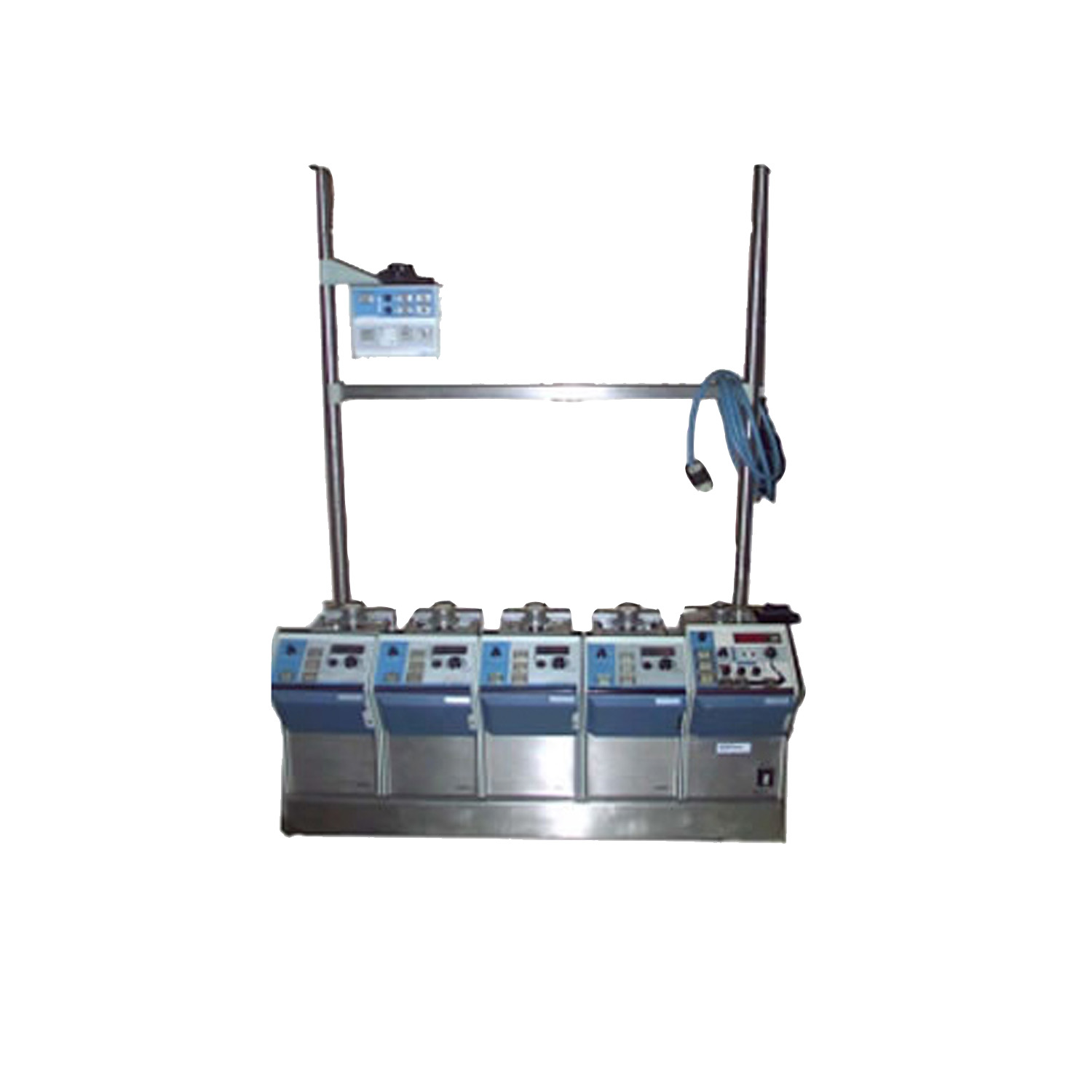

Sarns 7400 Heart-Lung Bypass Machine
Sarns 7400 Heart-Lung Bypass Machine
0 item is in your cart. View cart now
All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.
Details
Features
- Complete Open Heart System with Pulsatile
- DX Pum Head: 6" (15.2 cm) diameter with single control occlusion setting and individual tube clamp mechanisms
- Options: 4 pump system, 5 pump system
- Conductive castors (on the modular base) help ensure adequate grounding of the pump system used on a conductive floor
- Numeric display of roller assembly speed (RPM) and computed flow rates (in liters per minute) based on RPM and size of tubing used in the pump head
Specifications
Physical Characteristics
- Height from base: 17.5" (44.5 cm)
- Height from floor when mounted on base: 26.5" (67.3 cm)
- Width: 9" (22.9 cm)
- Depth: 19.5" (49.5 cm)
- Weight: 57 lbs (25.8 kg)
Tubing Specifications
- Material: Flexible polyvinyl chloride (PVC) only
- Max Outside Diameter: ¾" (19mm)
- Max Inside Diameter for Low-Flow Use: ¼" (6.4mm)
- Wall Thickness Range: 1/16" to 3/32" (1.6 - 2.4mm)
- Recommended Durometer Range: 58-68
Electrical Specifications
- Part Number 13400: 115 Volts AC 60 Hz; 100 Microamps; 0.1 ohms
- Part Number 13600: 220 Volts AC 50 Hz; 100 Microamps; 0.1 ohms
- Part Number 14150: 100 Volts AC 50/60 Hz; 100 Microamps; 0.1 ohms
