Details
Versatile operating table is highly customizable for a variety of surgical applications

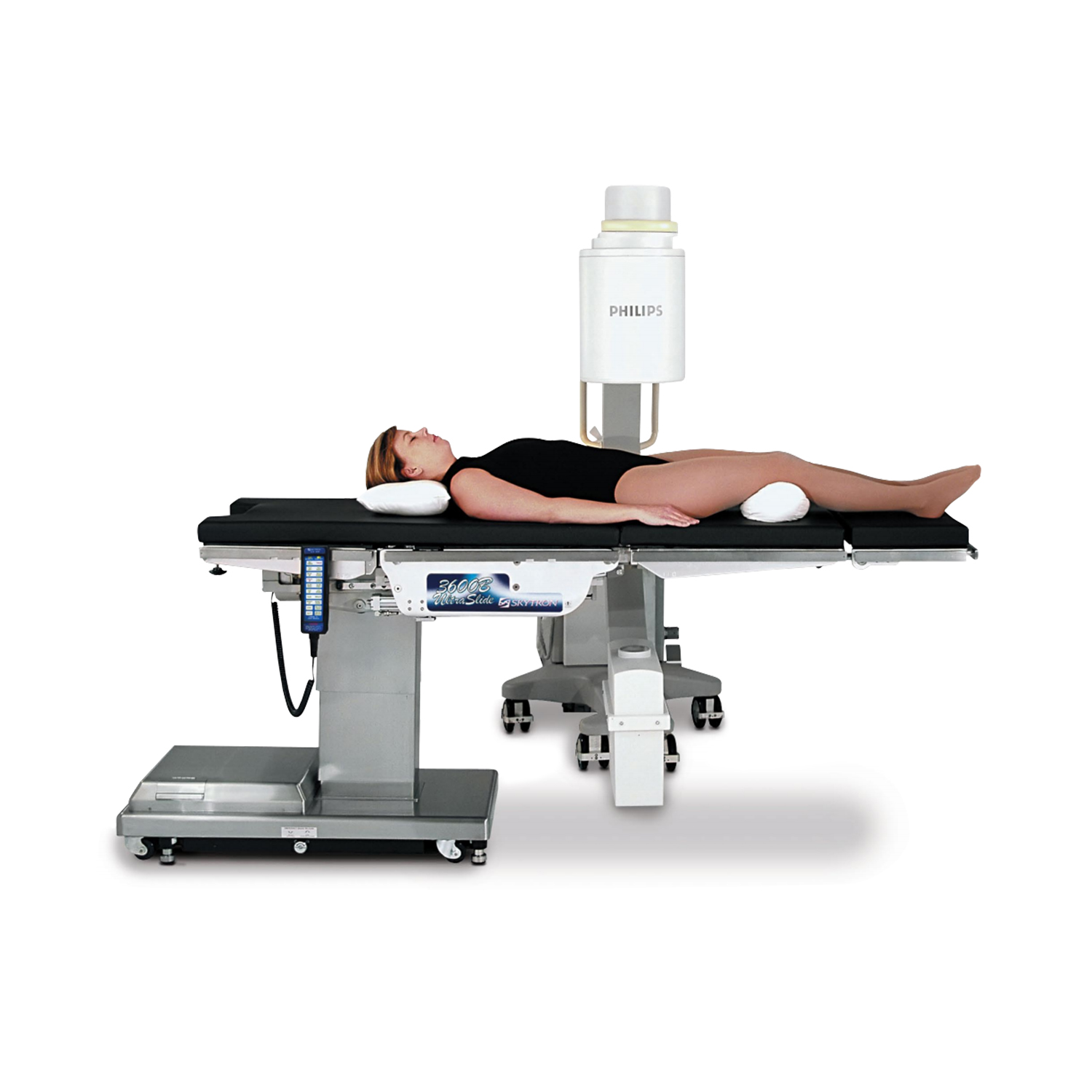

The Skytron UltraSlide 3600B is a full-featured operating table with a variety of positioning capabilities to suit a wide range of surgical and imaging applications. By integrating a wide range of optional accessories, operators can fully customize the Skytron UltraSlide 3600B Surgical Table. With 23-inch top slide, the Skytron UltraSlide 3600B can be easily used in C-arm imaging procedures.
The Skytron UltraSlide 3600B is available New from Med Vest Technology. For more information, contact an Med Vest Technology representative today.
Features
- Versatile operating table can be customized for a variety of surgical applications:
- Ophthalmic / ENT
- Urology
- Kidney / Thoracic
- Shoulder Arthroscopy
- Upper / Lower Body Imaging
- OB / GYN
- Neuro: Neck / Lumbar
- Table is electro-hydraulic battery powered with removable, 15-foot power cord for battery charging.
- Handheld, backlit remote control for stainless steel housing for extra durability.
- Using the remote control, operators can adjust the table in the following positions:
- Table height
- Flex / Reflex
- Leg Section Up / Down
- Back Section Up / Down
- Trendelenburg / Reverse Trendelenburg
- Lateral tilt
- Top Slide
- Beach Chair
- 23-inch top slide, full features and optional patient positioning for C-arm access.
- 9.5 inch slide-to-head for full upper body imaging.
- 13.5 inch slide-to-foot for full lower body imaging.
- Power kidney bridge for safe and easy positioning.
- Removable back and leg sections for extended customization capabilities.
- Four-point braking system with push button operation, including manual override.
- Self leveling breaks for stability on uneven floors.
- Maximum load rated at 1,000 lb lift and 800 lb articulation.
- Optional: 40-inch carbon fiber extension to meet specialty imaging requirements.
Specifications
Dimensions
- Length without headrest: 69 in (1750 mm)
- Length with headrest: 82 in (2080 mm)
- Width: 19.5 in (500 mm)
- Width with side rails: 22 in (560 mm)
- Weight of table: 800 lb (365 kg)
- Maximum load - Lift: 1000 lb (455 kg)
- Maximum load - Articulation: 800 lb (365 kg)
Adjustments
- Height: 24 - 42.5 in (610 - 1080 mm)
- Lateral tilt (left/right): 30°
- Trendelenburg: 30°
- Reverse Trendelenburg: 30°
- Power Kidney Bridge: 5.75 in (145 mm) lift
- Back up/down: 90°/40°
- Leg down: 15°/100°
- Return to level: anatomically correct return to horizontal position from articulated positions
- Top slide/head: 9.5 in (240 mm)
- Top slide/foot: 13.5 in (340 mm)
- Flex/Reflex: 40°/90°
- Base breaking (lock/unlock)
- Beach Chair
