Details

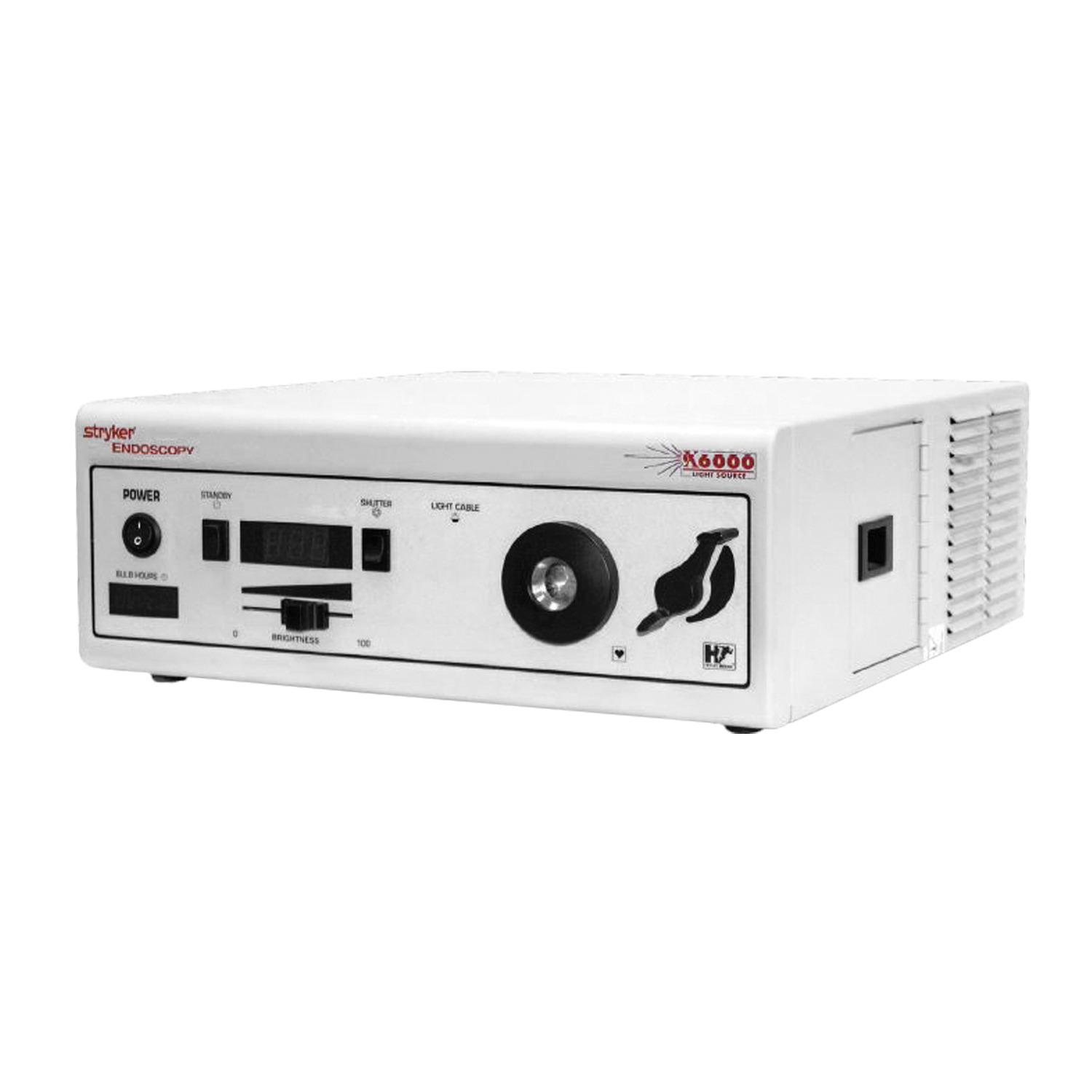

The Stryker X-6000 Xenon Light Source provides outstanding illumination.
The Stryker X-6000 Xenon Light Source is a high performance device designed for use with Stryker medical video cameras to provide outstanding illumination of the surgical site.
The X-6000 is equipped with a special safety feature that, when using an ESST cable, will prevent accidental burning caused by an unattended light cable. Electronic Scope Sensing Technology senses when the scope and the light cable are separated and places the light source in standby.
Specifications
General
- Electrical:
- Primary 100 - 240VAC 50/60 Hz 450W
- Fuse 8.0A 250V
- Fiber Optic Cable Range: 2 mm to 11.5 mm outside diameter continuously adjustable
- Dimensions: 5.5 (H) × 15 (W) × 16.3 (D) inches (14 × 38.1 × 41.4 cm)
- Weight: 10.9 Kg
- Lamp: 300 Watt Xenon Cermax
- Lamp Life: Approximately 500 hours
- Thermal Limit: 85°C/185°F
- Operating Conditions: 5 to 40°C, 10% to 85% Relative Humidity
- Transportation & Storage: 5 to 40°C, 10% to 85% Relative Humidity, 700hPa to 1060hPa
- Classifications & Approvals:
- Complies with IEC 601-1 with Amendments 1 & 2, CSA Std., C22.2 No. 601.1-M90, and UL2601-1.
- Complies with EN 60601-1-2: 1993 (EMC Compliance of Medical Devices)
- Class 1 Equipment
- Type CF applied parts
- Patent Protection: U.S. #5,850,496 and 6,110,107. Other patents pending
