Details

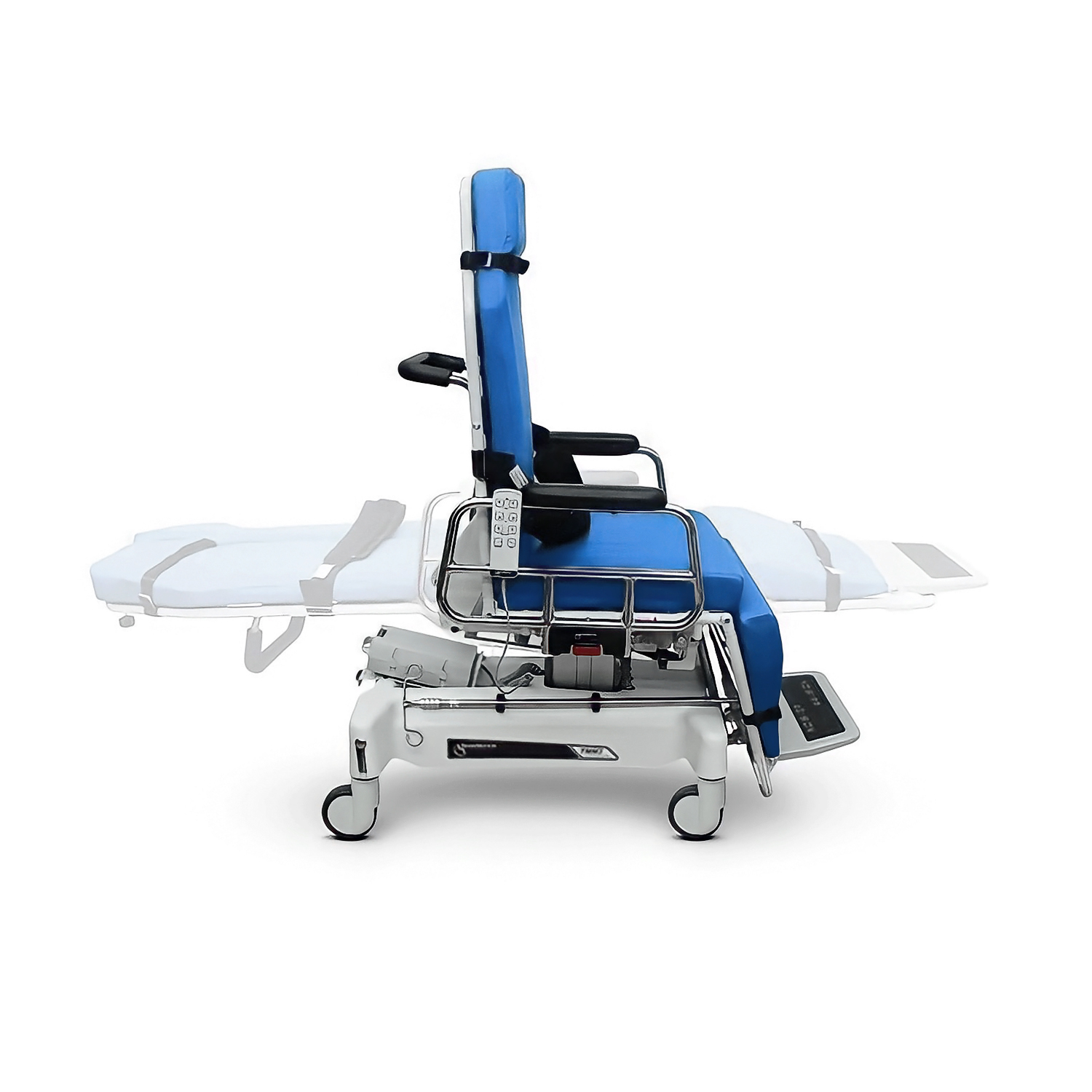

The TMM3 Video Fluoroscopy Swallow Study (VFSS) Stretcher-Chair features powered patient positioning designed specifically for performing barium swallow studies. its 90° rotating seat can eliminate transfers by allowing patients to remain in-chair for both lateral and A/P imaging. Powered back, leg, and height adjustments eliminate hydraulic, pneumatic, or manual positioning and allow for effortless conversion from chair to stretcher configurations. The TMM3 is a procedure chair, transport device and recliner all in one!

350 lb patient weight capacity is the highest capacity for any available swallow-chair.
90° rotating seat.
Radiolucent back.
Powered patient positioning.
Auto-extending footrest.
Swing-and-tuck side rails.
Manual quick release back.

Specifications

Seat Height - Low: 2.1 inches (64 cm)

Seat Height - High: 33 inches (83.82 cm)

Seat Width: 24 Inches (61 cm)

Back Width (No Extension): 24 inches (61 cm)

Overall Width (Rails Up): 30.5 inches (77.47)

Patient Surface Length (Standard): 77 inches (195.58 cm)

Patient Surface Length (With Optional Manual Folding Foot Rest): 70.4 inches (179 cm)

Overall Chair Height: Low: 55.5 inches (141 cm)

Overall Chair Height: High: 63 inches (160 cm)

Backrest Articulation: 0° - 86°

Side Rail Height When Up (Seat Pan to Rail Top): 10.88 inches (27.64 cm)

Side Rail Length: 21.1 inches (54 cm)

Wheelbase (Standard) [LxW]: 30 inches x 20 inches (76 cm x 51 cm)

Wheelbase (Short (S) Option) [LxW]: 26 inches x 20 inches (66 cm x 51 cm)

Maximum Patient Weight: 350 lbs. (158 kg)

Charging System - Input Volts: 100-240 VAC

Charging System - Current: 1.0A (Max)

Charging System - Frequency: 50/60 HZ

Charging System Output: =24V DC 1.4a

Charging System Max Power: 36.0W

Battery: 24V - 4.5AH Sealed Lead Acid
