Details

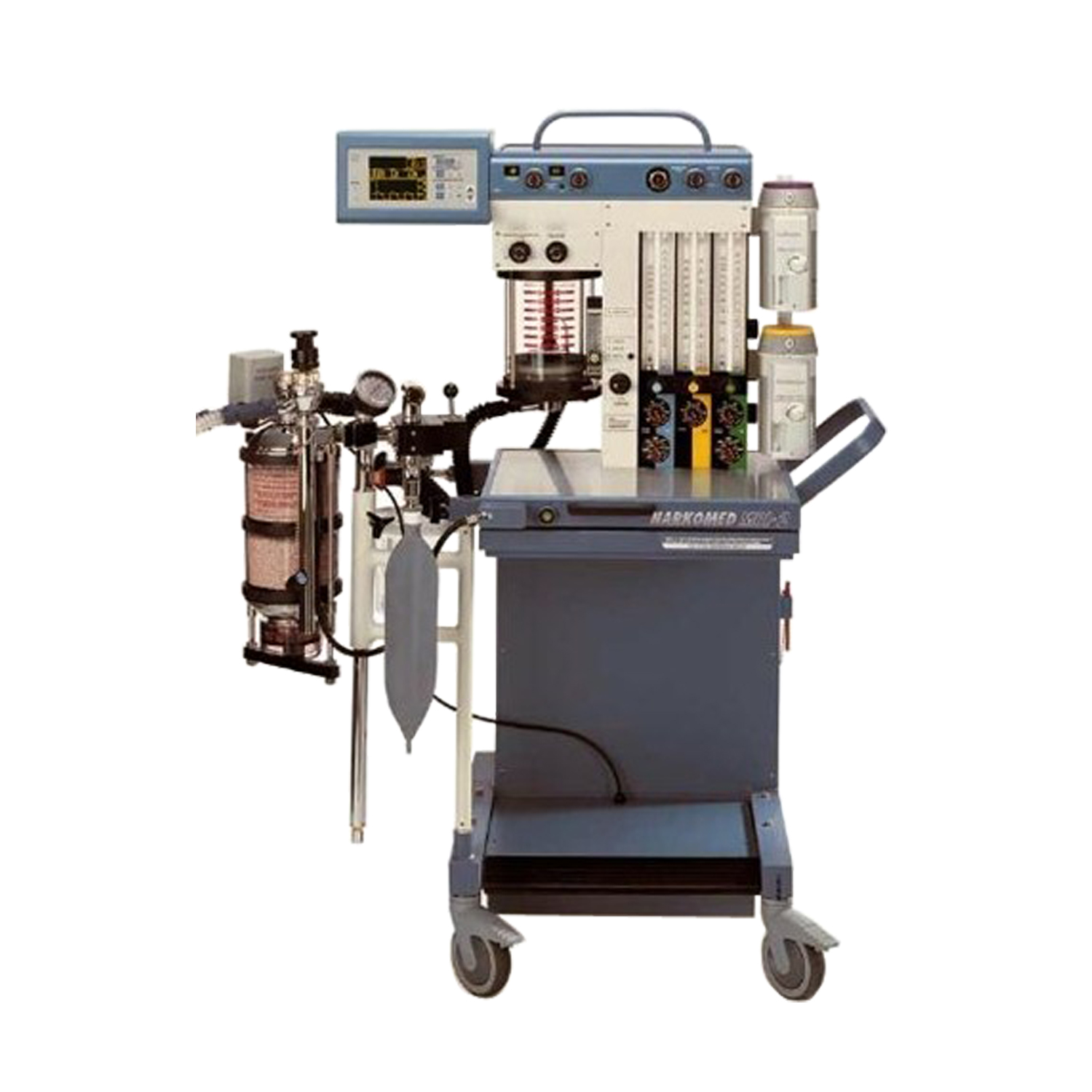

A robust, MRI-ready anesthesia system
The Drager Narkomed MRI-2 is a unique anesthesia system designed with an integrated ventilator and VPO monitor that is capable of operating in shielded or unshielded MRI environments of up to 3.0 Tesla — shortening the distance between the patient and the machine.
Even when placed in direct contact with the MRI, the Narkomed MRI-2 works dependably and produces no detectable image distortion. It does this while providing a complete anesthesia for a wide range of clinical operations.
The Narkomed MRI-2 also features integrated and customizable alarms, a three-hour battery backup, an ultrasonic flowmeter and a scavenging system that can either be open or closed. Available with the AV2+ Ventilator, a time-cycled, pressure-limited anesthesia ventilator, and the Vapor 2000 vaporizer.
Features
- Can be used in shielded or unshielded MRI environments of up to 3.0 Tesla.
- Integrated monitor measures and displays airway pressure, volume and oxygen data with airway pressure waveform.
- Customizable alarms for each unique situation.
- Standard Narkomed patient suction system with regular or reusable canister designed for MRI use.
- 3-hour battery backup guarantees continuous operation of all machine functions.
- Accurate ultrasonic flow sensor has no moving parts for easy cleaning.
- Time-cycled, pressure-limited AV2+ ventilator equipped with pneumatic circuitry and independent breathing rate and tidal volume controls.
- Vapor 2000 needs no annual recalibration, compensates for variances in pressure, temperature and flow.
- Open or closed waste scavenging system.
- Dual canister absorber for increased time between absorbent changes.
- Compatible with halothane, isoflurane, enflurane and sevoflurane anesthetic agents.
Specifications
General
- Dimensions: 31.5” (80 cm) W x 53” (135.3) H x 27” (68.6 cm) D
- Weight: 230 lbs (104.3 kg)
- Weight of Battery Charger: 3 lbs (1.36 kg)
Electricity
- 120 Volt Power Supply: 100 - 120 VAC @ 50/60Hz
- 220/240 Volt Power Supply: 200 - 240 VAC @ 50/50Hz
Battery
- Reserve Power Time: ≤ 3 hours
- Charging Time: ≤ 16 hours
Gas Delivery System
- Number of Gases: 3 gas capability (O2, N2O, Air)
- Oxygen Flush Flow Rate: 55 L/min
- Low Oxygen Supply Pressure Alarm: 30 - 40 psi
Vaporizer
- Vapor 2000
- Positions: 2
- Mounting: Fixed
Spec Title
- AV2+
- Frequency: 1 - 99 (in 1 BPM increments)
- I:E Ratio: 4:1 -1: 4.5
- Inspiratory Flow: 10 - 100 L/min
- Tidal Volume: 20 - 1500 mL
- Pressure Limit Adjustment: 15 - 120 cmH2O
Oxygen Monitoring
- Display Range: 10 - 100%
- Resolution: 1 vol% O2
Airway Pressure Monitoring
- Display Range: -10 to 125 cmH2O
- Resolution: 1 cmH2O
Tidal Volume Monitoring
- Display Range: 0.1 - 2.0 L
- Resolution: 0.01 mL
Utility Requirements
- System operates with 120 VAC @ 50/60 Hz electrical source. Regulator assemblies and yokes for external O2 and N2O cylinders. O2, N2O and Air hoses for connection pipeline sources to DISS machine connections.
