Details

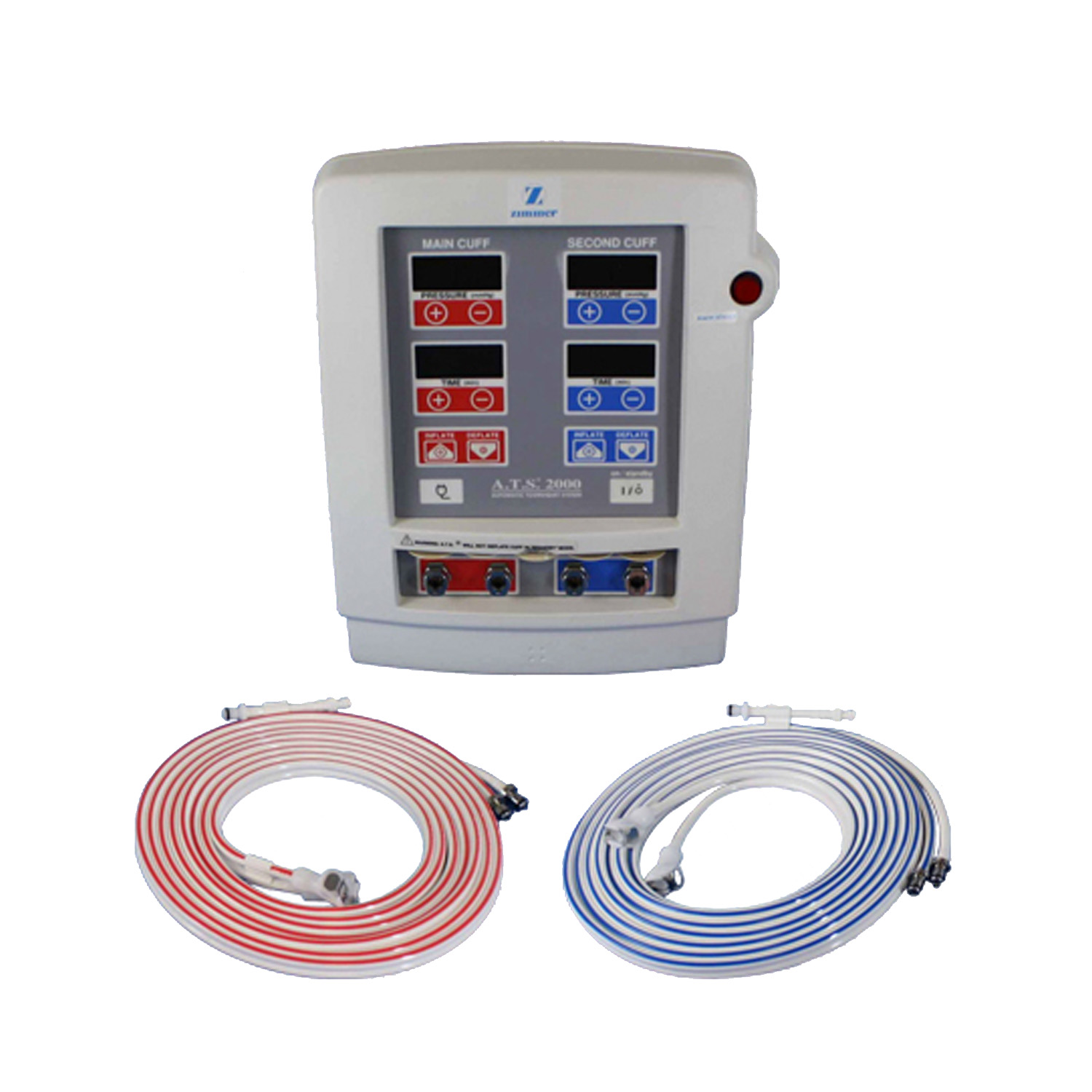

New or used Zimmer A.T.S. 2000 are dual-channel tourniquet systems that features two independently operating cuffs, customizable time and pressure defaults and precise microprocessor controls. The A.T.S. 2000 is designed to be easily portable for use with either a tabletop or a tourniquet stand. The unit calibrates and self-tests alarm tones and displays every time it is switched on so clinicians can get right to work.
Features:
- Two independently operating cuffs for IVRA procedures
- Customizable alarms, pressure settings for each unique situation
- Microprocessor control for improved reliability and added safety during IVRA cuff switching
- Automatic calibration, self-tests at every startup
- Modular design for easy service and repairs
- Lightweight unit is easily portable
- Internal reservoir for faster inflation
- Clear, bright LED display
- Alarms for pressure, time, low battery, hardware failure
- Adjustable alarm volume
- Built-in battery charger
Specifications
General
- Overall Dimensions: 12.75" (32.4 cm) H x 10" (25.4 cm) W x 10.5" (26.7 cm) D
- Weight: 19.8 lbs (9 kg)
Timer
- Time Alarm Set Ranges: 0 - 240 min.; 1 min. increments
- Timer Accuracy: 0.25% ±1 second
Power
- Line Voltage Range: 90 - 240 V ~, 50/60 Hz, auto switching
- Line Current: 670 mA RMS @ 120 V ~
- Input Power: 53 Watts Typical
- Power Cord: Type SJT, AWG 16, 14 ft. (4.27 m)
- Power Plug: Hospital grade, 3 prong straight blade, 15 Amp
Pressure
- Cuff Pressure Range: 50 - 475mm Hg
- Pressure Accuracy: ±3 mmHg (50 - 475mm Hg)
- Pressure Regulation: ±4 mmHg of set point (10 second average under non-transient conditions without external leaks)
- Maximum Pressures: 475 mm Hg cuffs | 700 mm Hg reservoir
Battery
- Battery Type: 2 Rechargeable, 12V - sealed lead acid, 2.3 Amp hours
- Battery Discharge Time: Unit will operate on battery power for 60 minutes minimum with fully charge batteries
- Battery Recharge Time: 24 hours (Maximum) Unit should be plugged in 24 hours before initial use.
