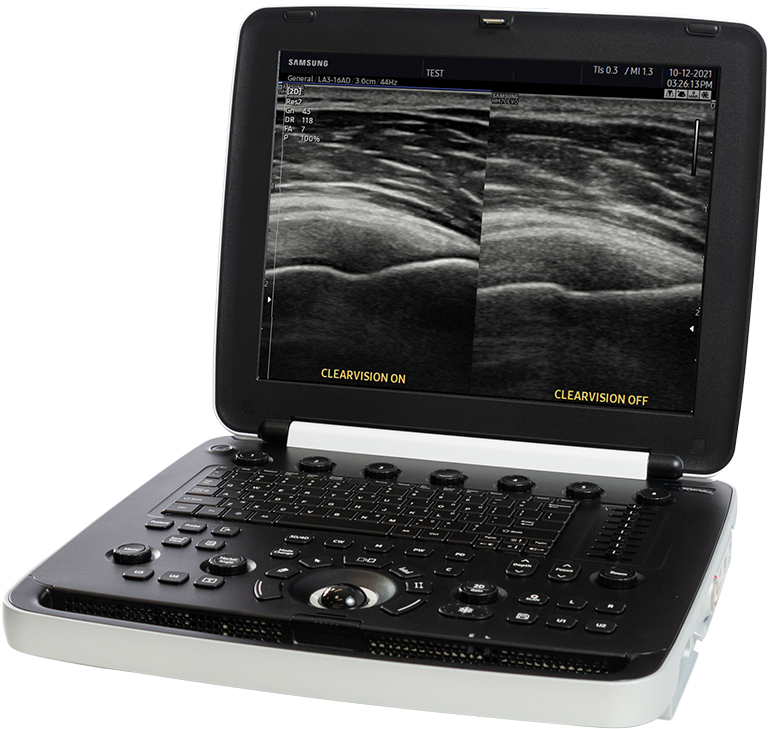

The simple, intuitive interfaces enable users to immediately get to work in emergency situations. The HM70 EVO is engineered to provide the most direct interfaces and smooth actions from anywhere, avoiding delays caused by configuration. Samsung has considered even the smallest details of usability to support users with the exceptional possible performance.
Intuitively tuned interfaces
Intuitive buttons and screen layouts are optimized to express information clearly and enable complex actions to be simply performed.
View images and cines in full screen
In the FullScreen mode, the ultrasound examination can be performed while viewing the image/cine that is fully expanded to the entire monitor.
Build predefined protocols to ensure every step is followed every time
EzExam+™ enables users to build or to use predefined protocols. It transforms the ultrasound investigation into a streamlined process. EzExam+™ ensures the full investigation is performed, eliminating the risk of forgetting an image or loop capture, as well as measurement and transducer preset change.
-
Quickly exam even in an emergency case
In case of emergency, an exam can be started with a temporary ID and patient information can be modified after the exam
-
Select your transducer and preset combination with one touch
With one touch, the user can select the most common transducer and preset combinations. QuickPreset increases efficiency to make a full day of scanning simple and easy.
-
Save image data directly to USB memory
QuickSave function allows image data to be saved directly on USB memory during the exam.
-
Extended Power Pack
The system battery lasts approximately 75 minutes. The Extended Power Pack provides an additional 240 minutes (dependent upon user envirnonment).
*Optional Feature -

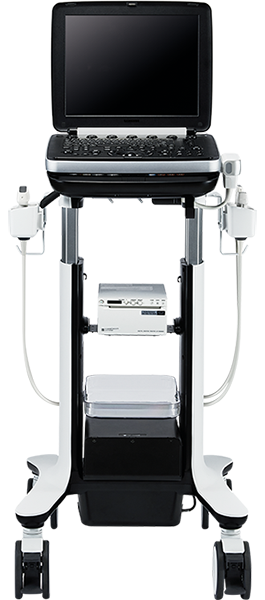

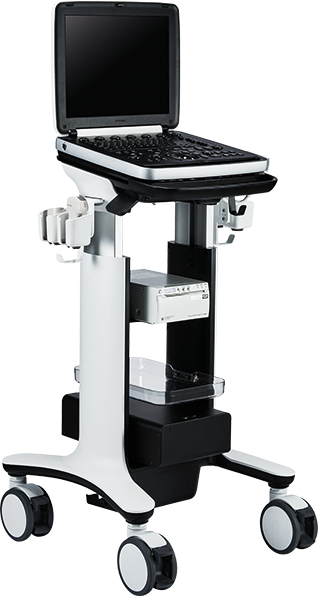

3 Probe Port Connections
Connect up to three transducers at once using the extended transducer ports on the optional cart, saving time and effort spent switching transducers in situations where every second counts.
*Optional Feature -
Shockproof Cushioned Carrying Case
The carrying case allows you to safely and conveniently transport the ultrasound system, transducers, and other accessories.
*Optional Feature

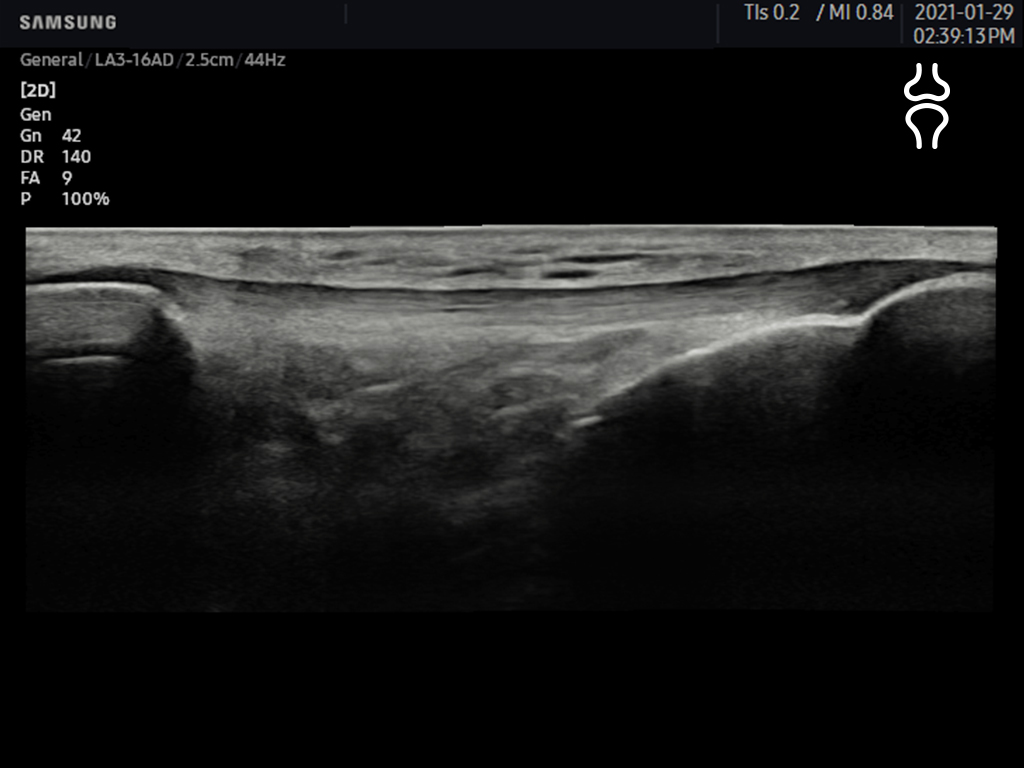

Media Gallery

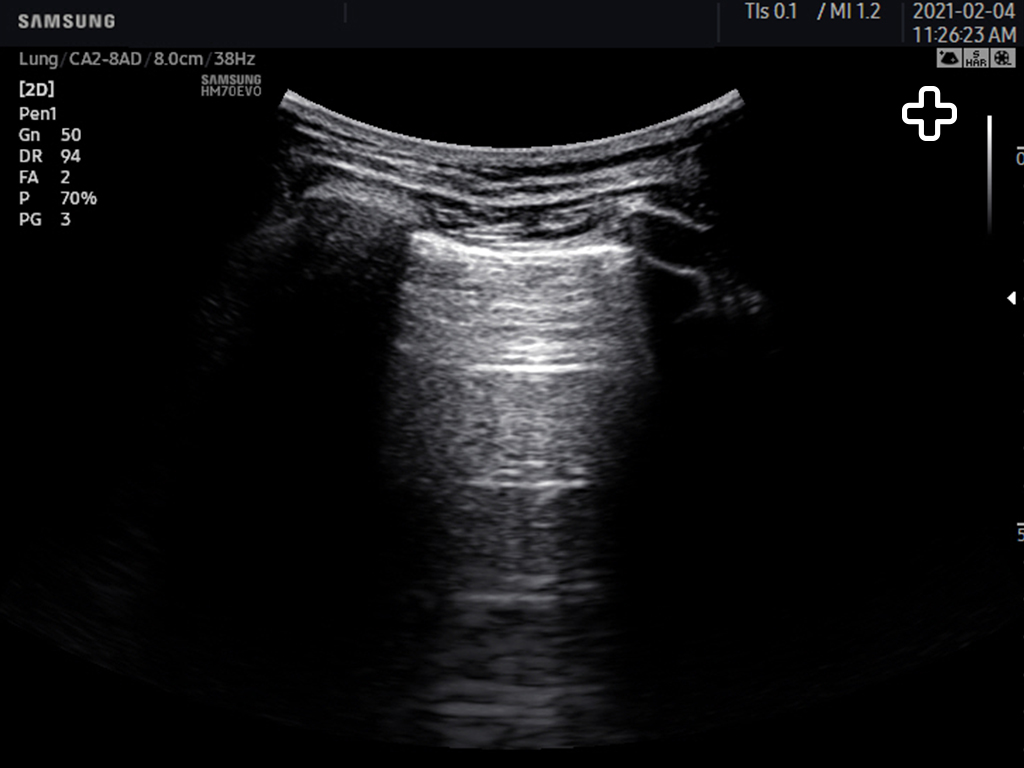

Lung Preset in A-Line
Morison's Pouch in FAST examination

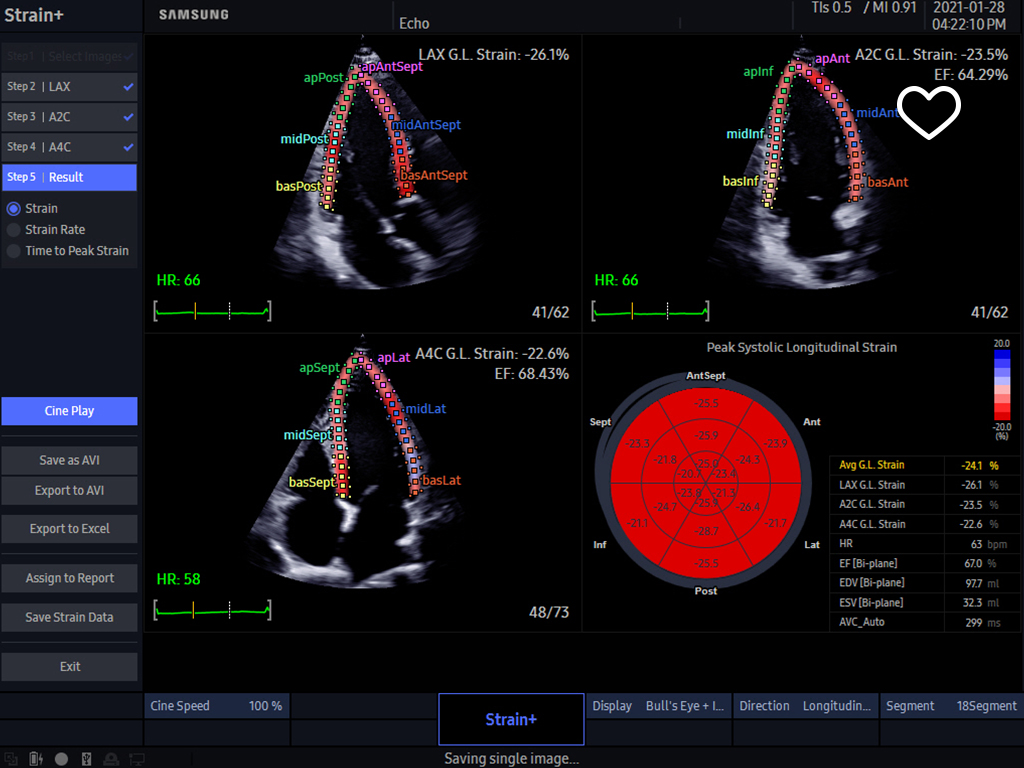

Wall motion measurement by Strain+

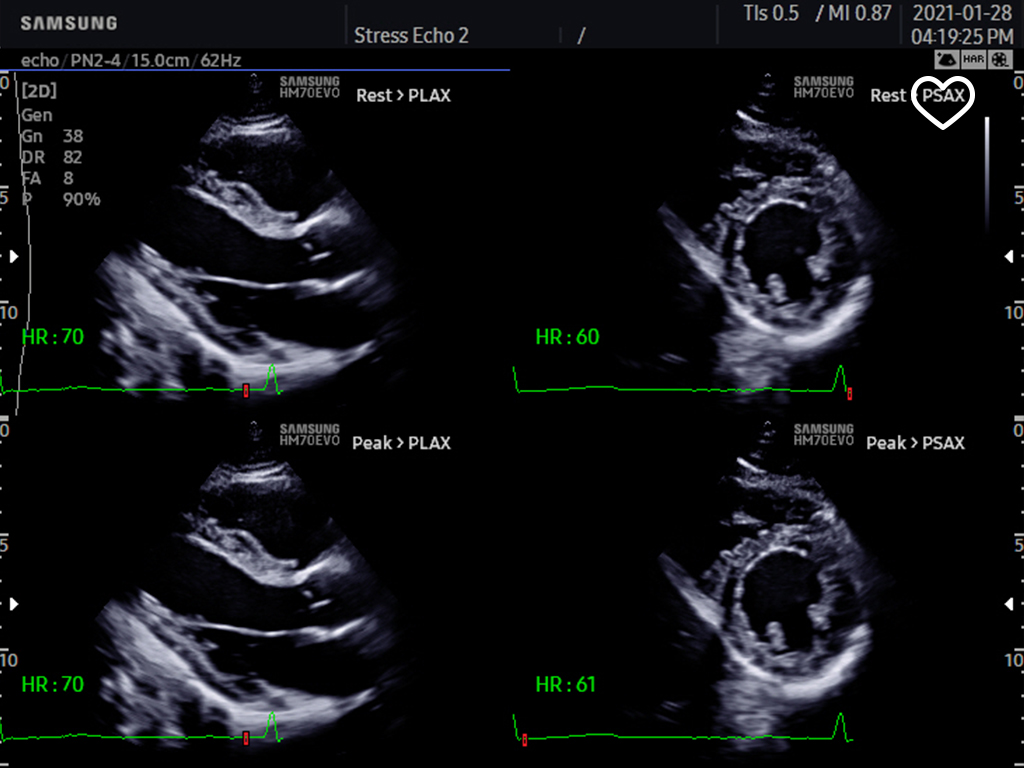

StressEcho

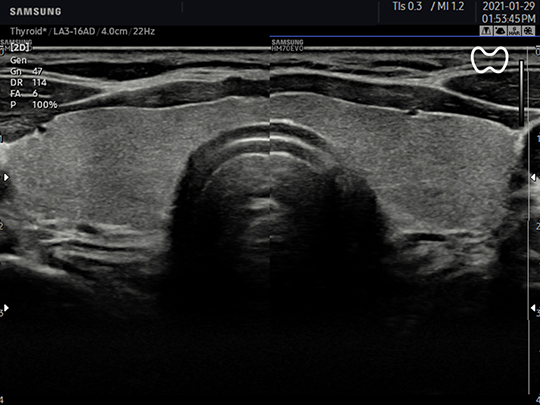

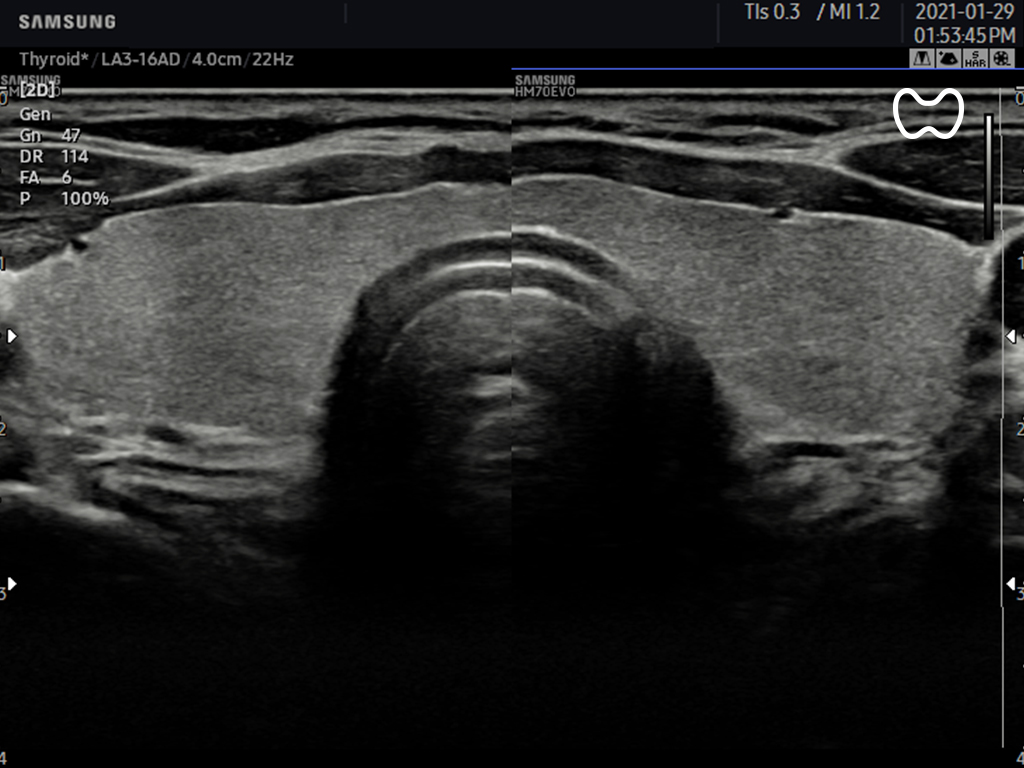

Thyroid nodule with ClearVision

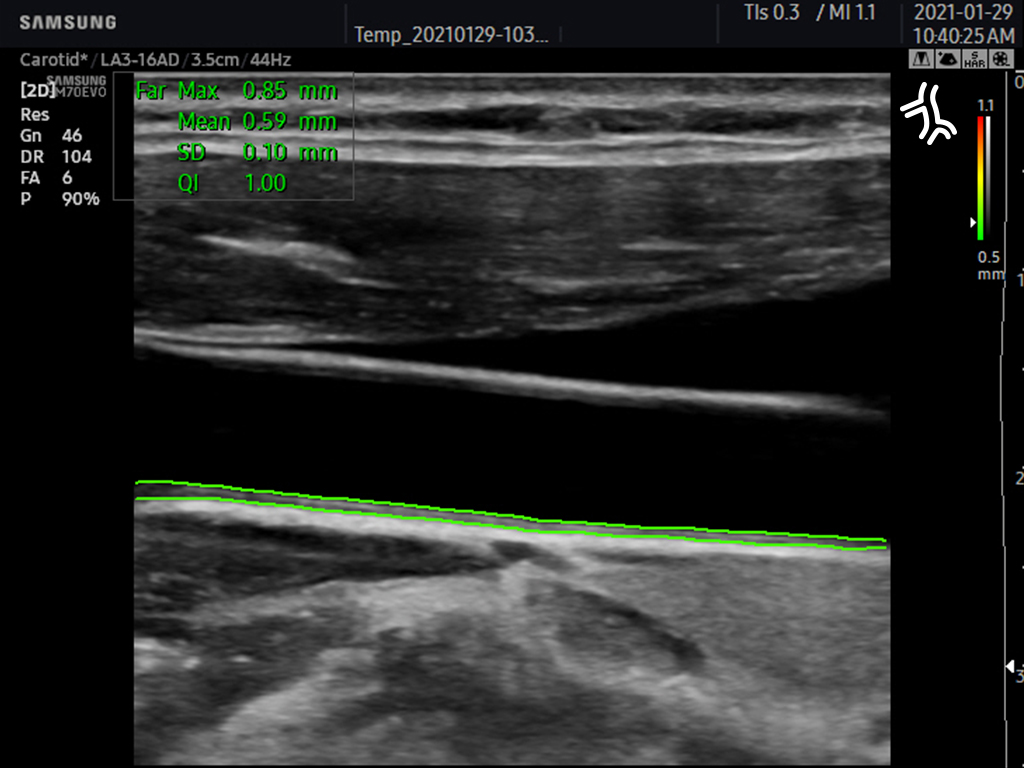

IMT measurement with AutoIMT
Patellar tendon in Panoramic View

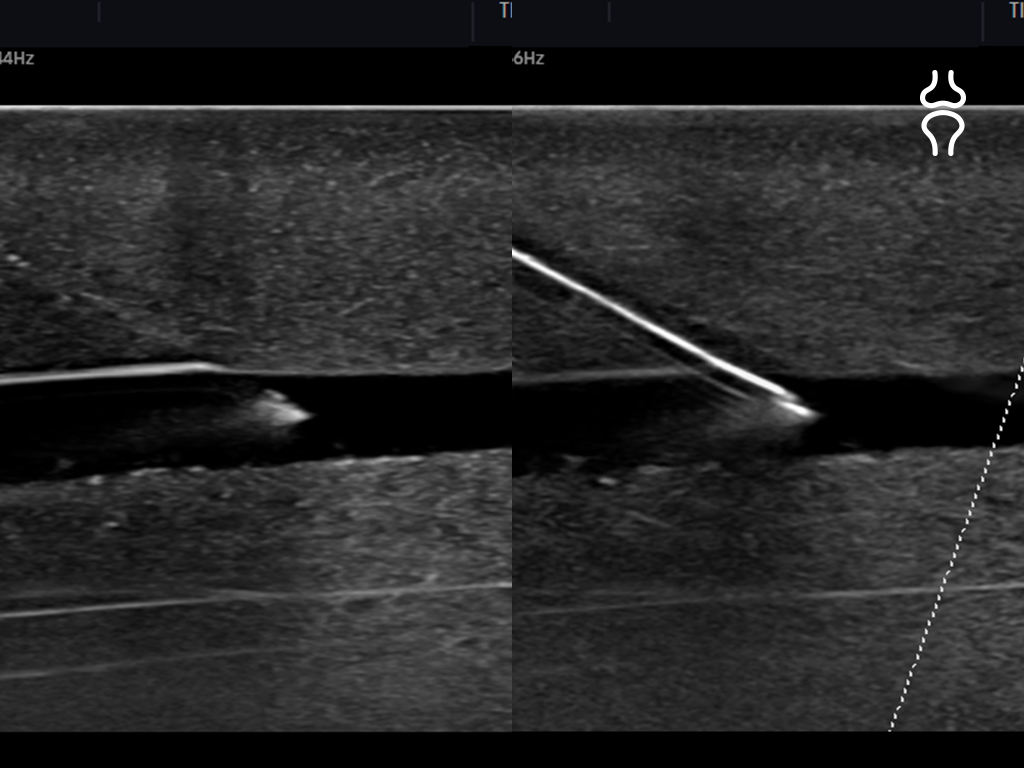

Visualization of Needle using NeedleMate™

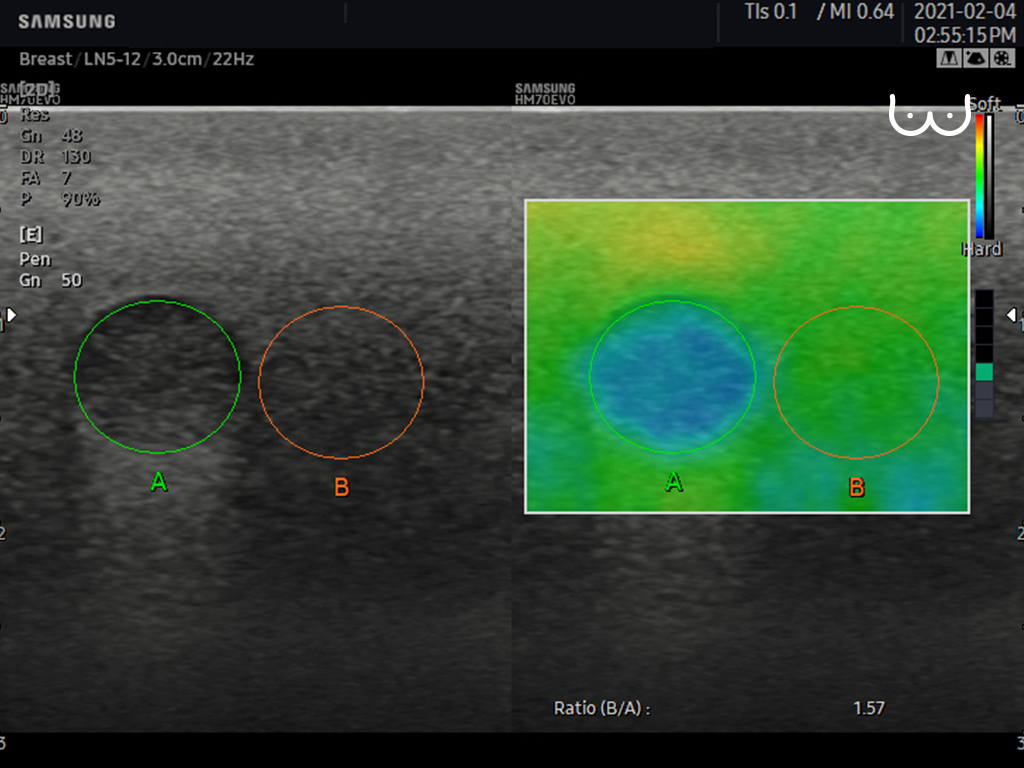

Strain ratio calculation with E-Strain™

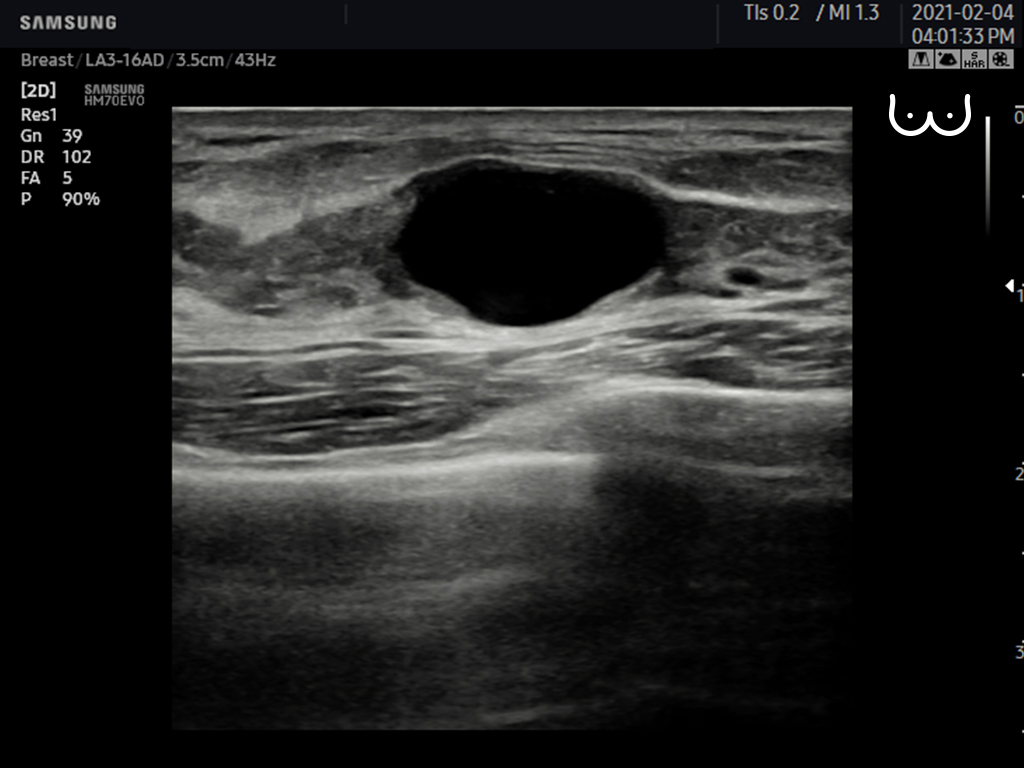

Breast cyst in 2D
Samsung HM70 EVO Compatible Transducers / Probes
Curved array transducers

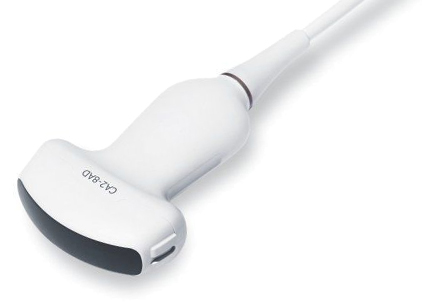

CA2-8AD
- Application: abdomen, obstetrics, gynecology, pediatric, musculoskelatal, vascular, urology

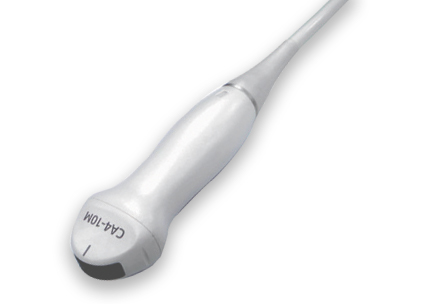

CA4-10M
- Application: abdomen, obstetrics, gynecology, musculoskeletal, pediatric, vascular, urology

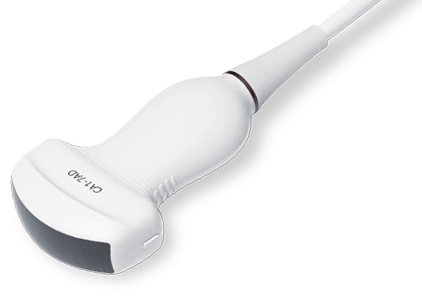

CA1-7AD
- Application: abdomen, obstetrics, gynecology, musculoskeletal, pediatric, vascular, urology
Linear array transducers

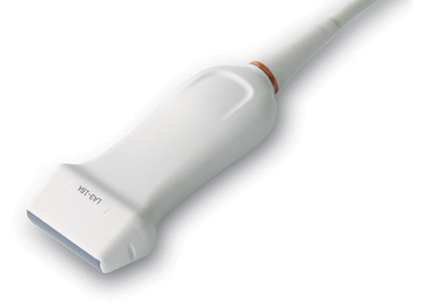

LA3-16AD
- Application: small parts, vascular, musculoskeletal, abdomen, obstetrics, gynecology, pediatric

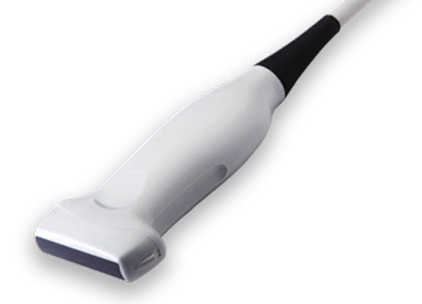

LN5-12
- Application: small parts, vascular, musculoskeletal, abdomen, obstetrics, gynecology, pediatric
Phased array transducers

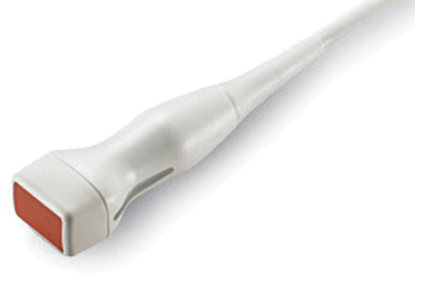

PN2-4
- Application: abdomen, cardiac, vascular, pediatric, TCD

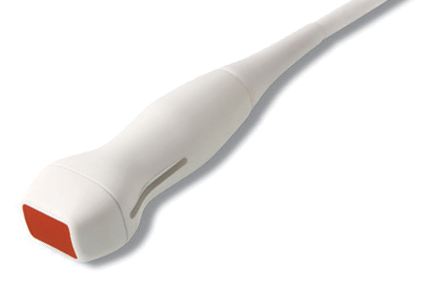

SP3-8
- Application: abdomen, cardiac, vascular, pediatric, TCD
Volume transducers

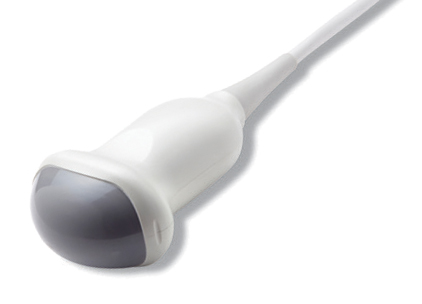

VN4-8
- Application: abdomen, obstetrics, gynecology, musculoskeletal, pediatric, vascular, urology

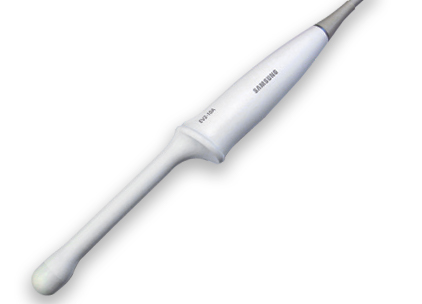

EV2-10A
- Application: obstetrics, gynecology, urology
Endocavity transducer

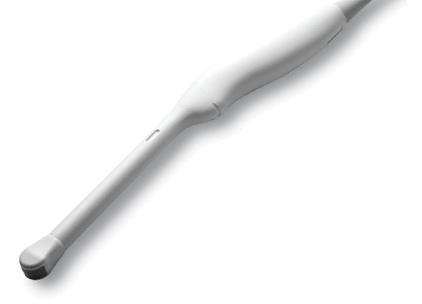

EVN4-9
- Application: obstetrics, gynecology, urology

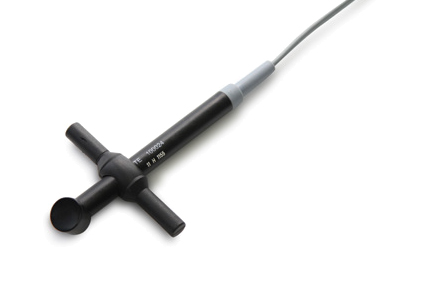

DP2B
- Application: cardiac, vascular
