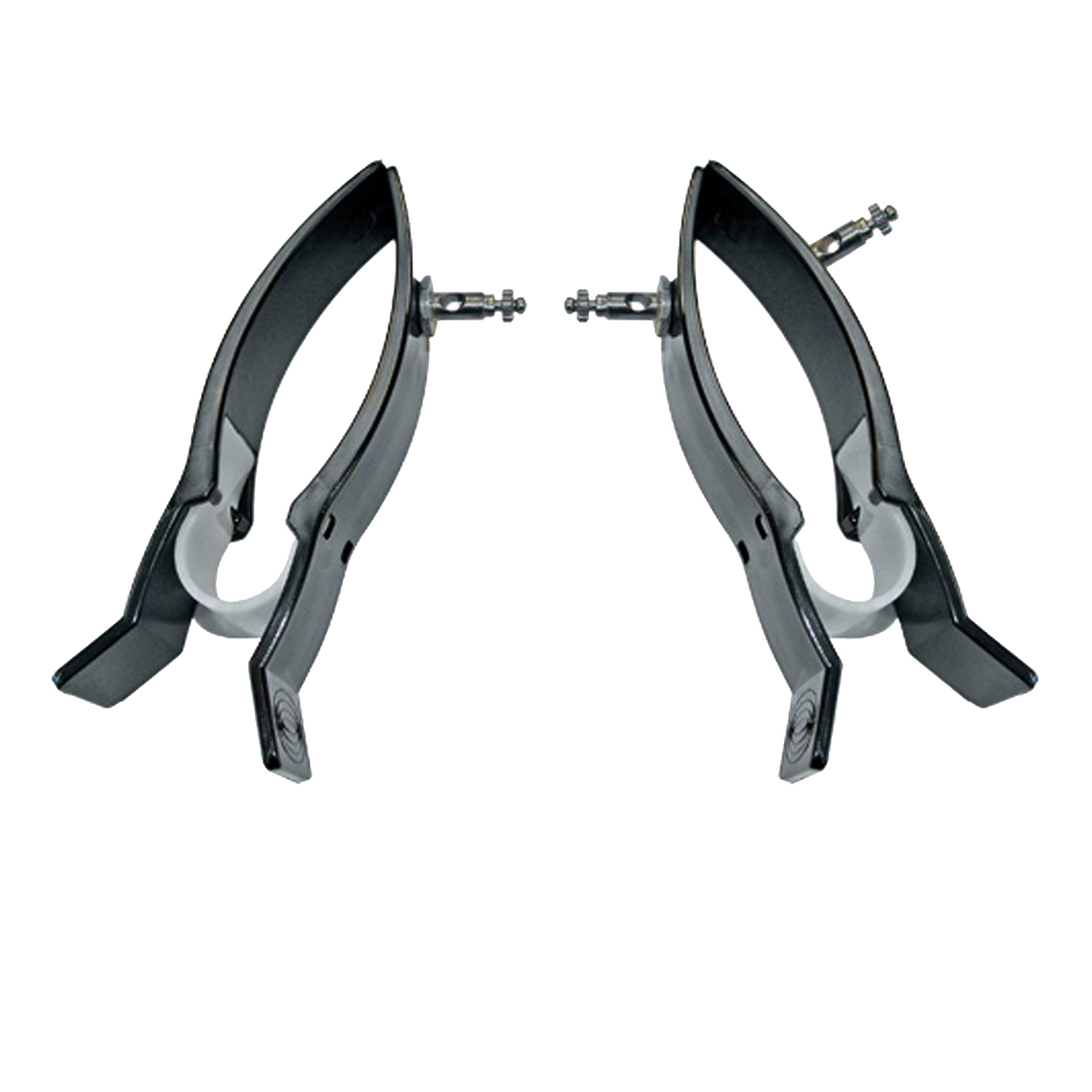

Reusable ECG Wrist Clips - Set of 2

Reusable ECG Wrist / Limb Clips - Set of 2

• 1 dual snap clip
• 1 single snap clip
• Lightweight
• Compatible with all snap style leadwires

Directions For Use:

Site Preparation

Electrode sites should be clean, dry and free of any oil film or residue. If oils, liniments, or lotions have been used in the patient's care, alcohol will be required to remove residue. When alcohol is used, allow site to dry completely. Use a brisk dry rub with a gauze pad to remove dead skin cells and remove any residue.

KLIP Application

Check the KLIP sensing plate to assure plate is free from any dry film. If gel or paste is preferred, apply directly to KLIP sensing plate and secure KLIP to prepared electrode site. If gel pad is used apply pad directly to patient, then secure KLIP with sensing plate directly on the gel pad. Check for proper KLIP tension. If easily disturbed, select another site by moving the KLIP towards the patient's torso. A secure KLIP will minimize potential motion artifact.

Cable Attachment

If pin connection is to be used, insert pin leadwires into locking post, and secure. If the snap connectors are to be used, attach the grabber style leadwire to the KLIP.

Note:

Cream or gel build-up under the sensing plate can be cleaned by unscrewing the snap or combining connector and removing the sensing plate. After cleaning, replace the sensing plate and reattach the connector.
