Details
User-friendly touch-screen patient monitor measures ECG, SpO2, NIBP, heart rate, temperature and respiration. Offers optional dual IBP, and EtCO2

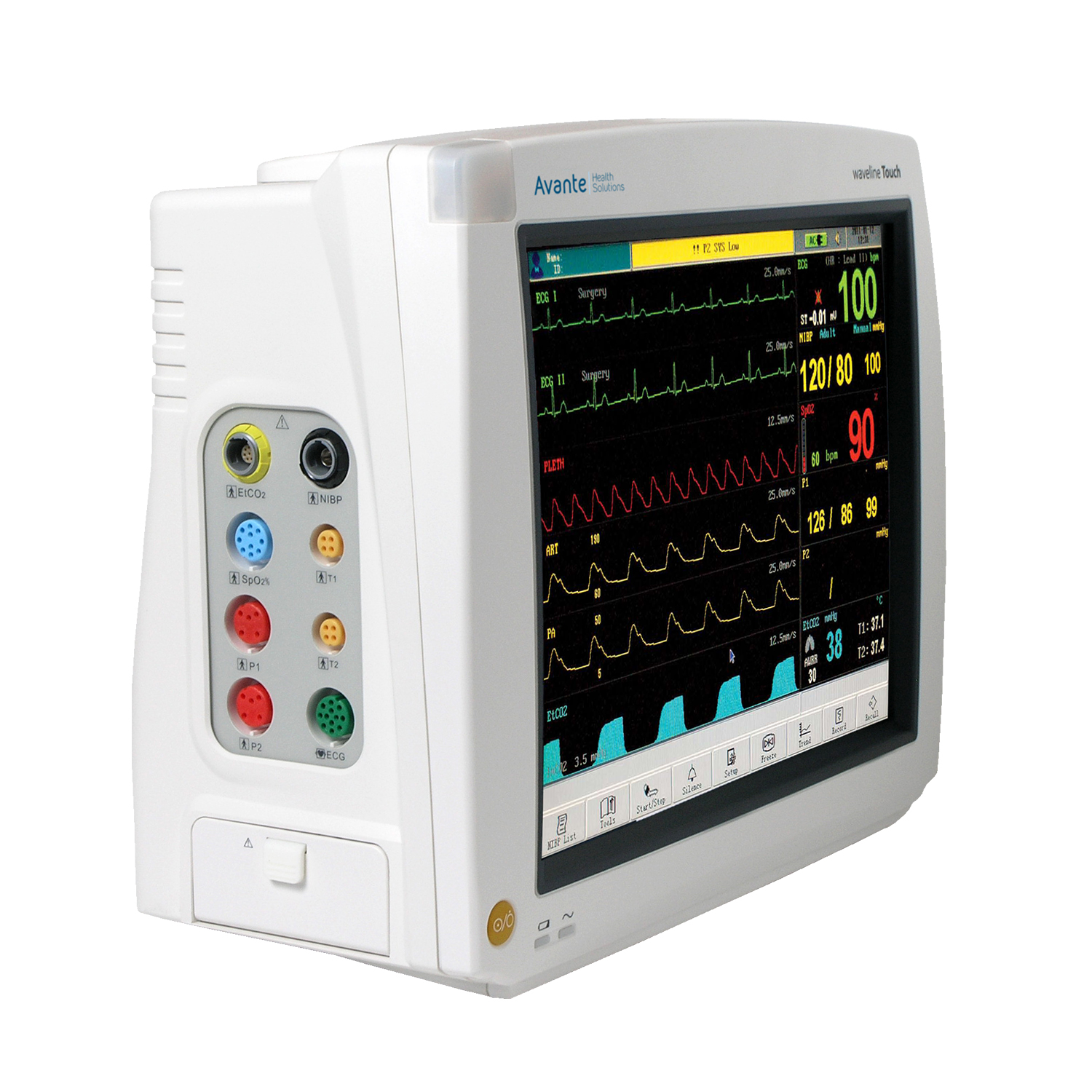

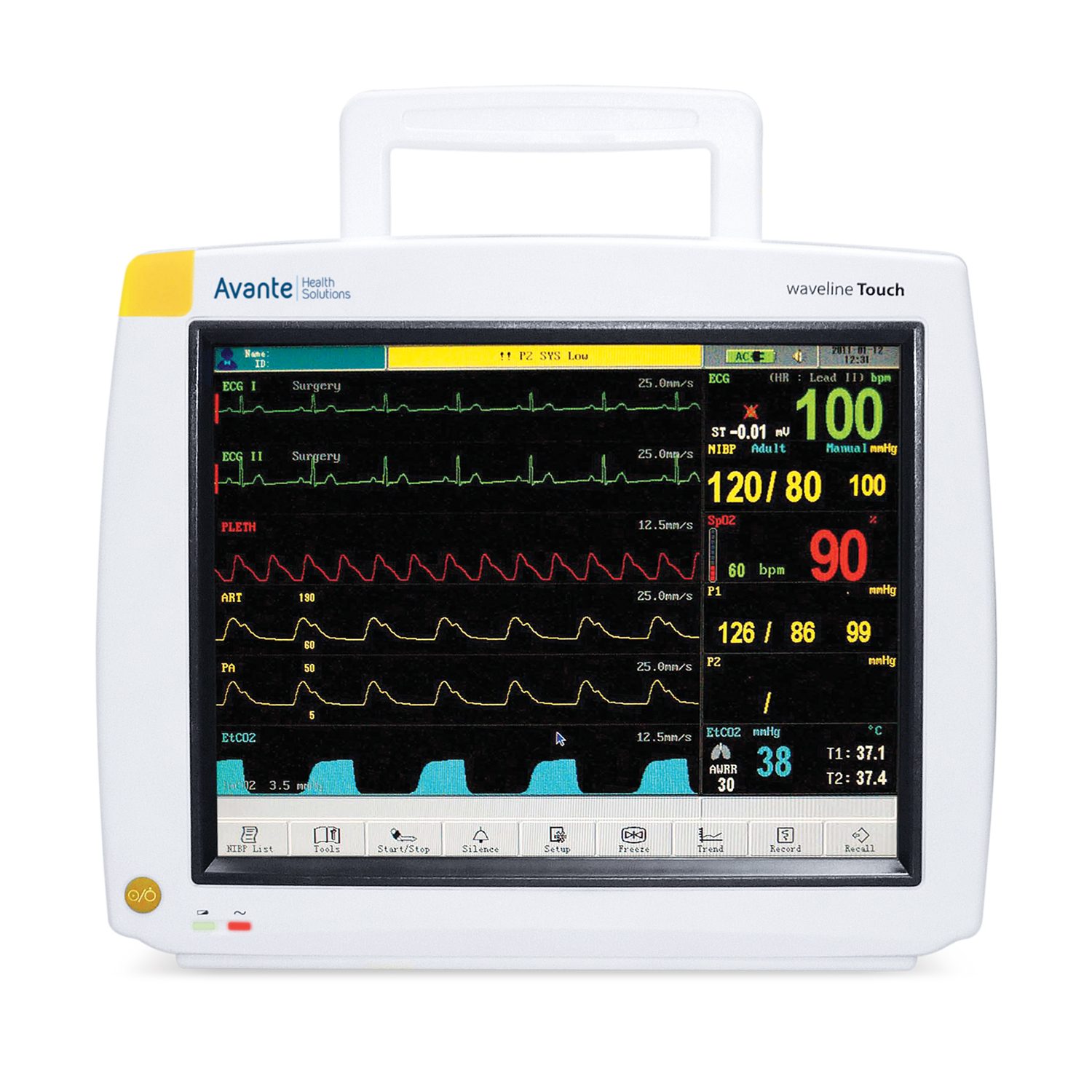

The fully-functional Waveline Touch features a 12.1" color TFT display with a touch-screen interface. It features multi-lead ECG monitoring, ST segment monitoring and 72 hours trend data analysis.
Features
- New - Bigger time stamp in upper right corner
- New - Standby button
- New - Revised SpO2 pitch tone is still audible when SpO2 rate decreases.
- New - Volume and Sounds are adjustable and now can be turned off completely
- New - Option to print Numerical Data Only
- New - Color of the waveforms can be changed
- EtCO2 Option allows compliance with ASA
- Available with optional dual invasive blood pressures, EtCO2, a battery and a built-in recorder.
- 12.1" color TFT display with a touch-screen interface
- Multi-lead ECG monitoring
- Built-in battery (optional)
- NIBP list display
- OxyCRG dynamic view display
- Built-in thermal recorder
- Networkable with a central monitoring system via a wireless or wired network
- S-T Segment and 72 hours trend data analysis
- Compact design convenient for mobile monitoring
- Drug dose calculations
- Multi-lingual settings
Specifications
Physical Weight & Dimensions
- Weight: 5kg
- Height: ~11 inches
- Depth: ~6-1/5 inches
- Width: ~12 3/5 inches
Application
- Neonatal, pediatric and adult patients
Operation Environment
- Power Source - External AC power or internal battery
- AC Power - 100-240VAC, 50/60Hz, <150VA
- Battery - Rechargeable Lead-Acid; Operating time under the normal condition (1 hour); Operating time after the first alarm of low battery (10 min.)
Temperature
- Working - 5°-40° C
- Storage - -20° C
Performance Specifications
- Display - 12.1" color TFT, Touch Screen
- Resolution - 800 × 600 pixels
- Trace - 4, 6 or 8 waveforms ECG (I, II, III, aVR, aVL, aVF, V1-V6), PLETH, RESP, IBPx2, ETCO2
- Indicator - Alarm indicator; Power indicator QRS beep and alarm sound
- Trend Time - 72 hours
- Recorder - Built-in, thermal array, 2 channels
- Record - Width 48mm
- Recorder - Paper 50mm
- Record - Speed 25mm/s, 50mm/s
ECG
- Input - 3-lead ECG cable and standard AAMI line for connection
- Input - (Optional) 5-lead ECG cable and standard AAMI line for connection
- Lead Choice - I, II, III, aVR, aVF, aVL, V
- Gain Choice - x0.5, x1.0, x2.0
- Frequency Characteristic - 0.05-40 Hz
- ECG Waveforms - 7 channels
- Penetration Voltage - 4000VAC 50/60Hz
- Sweep Speed - 12.5, 25 and 50 mm/s
- HR Display Range - 30-300bpm
- Accuracy - ±1% or ±1bpm, whichever is greater
- Alarm Limit Range Setting - Upper limit 80-400bpm; Lower limit 20-150bpm
RESP
- Measure Method - RA-LL impedance
- Range - 0-120 rpm
- Accuracy - + 3 rpm
- Alarm Upper-lower Limit Setting - Upper limit 6-120 rpm, Lower limit 3-120 rpm
- Sweep Speed - 12.5 and 25 mm/s
NIBP (Suntech)
- Measuring Technology - Automatic oscillating measurement
- Cuff Inflating - <30s-0-300 mmHg, standard adult cuff
- Measuring Period - AVE<40s
- Mode - Manual, Auto, STAT
- Measuring Interval in AUTO Mode - 2 min-4 hrs
- Pulse Rate Range - 30-250 (bpm)
- Measuring Range - Adult/Pediatric Mode, SYS 40-250 (mmHg), DIA 15-200 (mmHg); Neonatal Mode, SYS 40-135 (mmHg), DIA 15-100 (mmHg)
- Resolution - 1mmHg
- Accuracy - Pressure, Maximum Mean error ±5mmHg, Max. Standard deviation 8mmHg
- Overpressure Protection - Adult Mode 280(mmHg), Neonatal Mode 150 (mmHg)
- Alarm Limit Setting - SYS 50-240 mmHg, DIA 15-180 mmHg
TEMP
- Range - 25°-50° C
- Accuracy - + 0.2 °C 25.0°-34.9° C; + 0.1° C 35.0°-39.9° C; + 0.2° C 40.0°-44.9° C; 0.3° C 45.0°-50.0° C
- Display Resolution - 0.1° C
- Alarm Upper-lower Limit Setting - Upper limit 0-50° C, Lower limit 0-50° C
- Channel - 2 channels
- Alarm Limit Setting - 10-50° C
Masimo SET SpO2
- SpO2 Accuracy (non-motion):
- Adult Pediatric: 70~100 %: ±2 %, 0~69%: unspecified
- Neonate: 70~100 %: ± 3 %,0~69 %: unspecified
- SpO2 Accuracy (motion):
- Adult Pediatric: 70~100 %: ±3 %, 0~69%: unspecified
- Neonate: 70~100 %: ± 3 %, 0~69 % : unspecified
- Low Perfusion Performance: >0.02 % Pulse Amplitude and % Transmission >5
- SpO2: ±2 %
- PR: ±3 bpm
- Modes:
- Averaging mode: 2,4,8,10,12,14 and 16 s
- Sensitivity: Normal, APOD and Maximum
- PR Accuracy (non-motion):
- Neonate: 70~100 %: ± 3 %, 0~69 % : unspecified
- Adult Pediatric Neonate: 25~240 bpm: ±3 bpm
- PR Accuracy (motion):
- Adult Pediatric Neonate: 25~240 bpm: ±5 bpm
- Measuring Range:
- SpO2: 1~100 %
- PR: 25~240 bpm
- Perfusion: 0.02~20 %
IBP (Option)
- Measurement Range - -10-300mmHg
- Channel - 2 channels
- Pressure Transducer Sensitivity, 5μV/V/mmHg
- Impedance Range - 300-3000Ω
- Transducer Sites - ART, PA, CVP, RAP, LAP, ICP
- Resolution - 1mmHg
- Accuracy - ±1mmHg or ±2%, whichever is greater
- Alarm range - -10-300mmHg
EtCO2 (Option)
- EtCO2 Option allows compliance with ASA Standards for Basic Anesthetic Monitoring (Effective July 1, 2011)
- Mode of Sampling - Sidestream
- Principle of Operation -Non-dispersive infrared (NDIR) single beam optics, dual wavelength, no moving parts
- CO2 Measurement Range - 0 to 150 mmHg (0 to 19.7%, 0 to 20 kPa)
- CO2 Calculation Method - BTPS (Body Temperature Pressure Saturated)
- CO2 Resolution - 0.1mmHg(0-69mmHg); 0.25mmHg(70-150mmHg)
- CO2 Accuracy - 0-40 mmHg ± 2 mmHg; 41-70 mmHg ± 5% of reading; 71-100 mmHg ± 8% of reading; 101-150 mmHg ± 10% of reading; Above 80 breath per minute ± 12% of reading
- Sampling Rate - 100Hz
- Respiration Rate - 2-150 bpm
- Respiration Rate Accuracy - ±1 breath
- Response Time - <3 seconds - includes transport time and rise time
- Inspired CO2 Measurement Range - 3-50 mmHg
What Customers Are Saying
The Waveline Touch is very user friendly and incorporates end tidal CO2 which is now a requirement for sedation and anesthesia outside of the OR settings. Our staff picked it up quickly, the touch screen works great and the visibility is outstanding. It is very user customizable (colors of digital readouts, etc). I appreciate the tabular recording of the BP. It's a great unit, and DRE has been outstanding with support.
