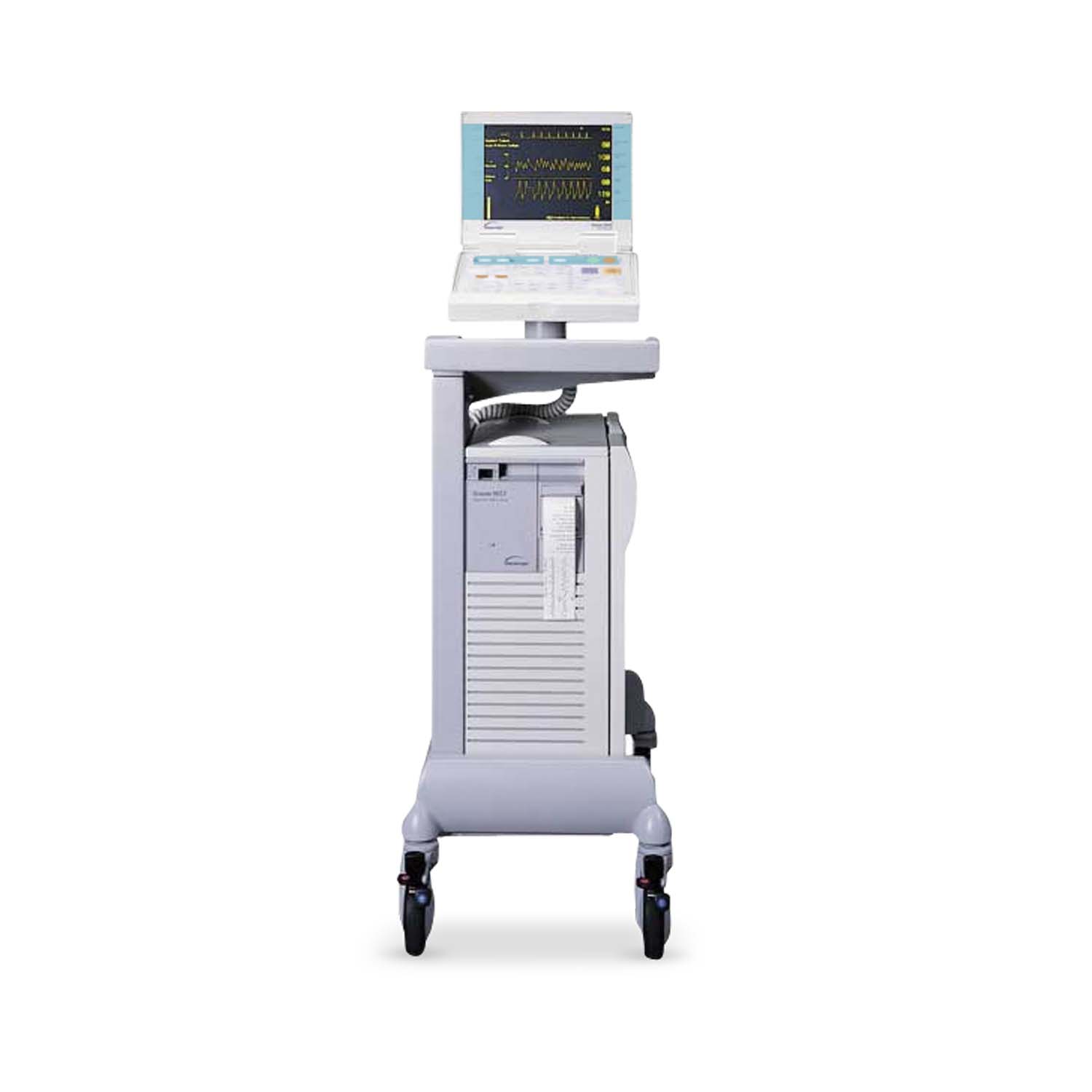

Datascope 97E Intra-Aortic Balloon Pump
Datascope 97E Intra-Aortic Balloon Pump
0 item is in your cart. View cart now
All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.
Details
The new auto-timing supervisor, "R-Trac" is a highly advanced second generation IAB timing control system that combines the sophistication of CardioSync 2 with rapid QRS identification and the fastest IAB inflation and deflation speeds available. The System 97E is the system of choice for handling the most challenging cardiac rhythms.
Faster speeds provide greater diastolic augmentation, enhanced unloading, and a wider use of R-Wave deflation triggering to track and effectively assist patients with arterial fibrillation.
A smart pattern-based timing algorithy, CardioSync™, rapidly adapts to difficult ectopics and sudden rate changes without interruption of pumping.
The 97E also offers a host of user convenience features that make it easier to use in the OR, Cath Lab, CCU and in transport.
Features
- Analyses cardiac interval patterns
- Automatic selection of R-Wave deflation
- Reliable A-Fib tracking
- Rapid QRS identification
- Improved Arrhythmia Management
Specifications
Mechanical
- Dimensions: 43" (H) × 22" (W) × 17" D (109 × 51 × 25 cm)
- Off hospital cart: 27" (H) × 50" (W) × 10" (D) (68 × 51 25 cm)
- Weight: Console - 82 lbs (37 kg), Battery - 35 lbs (16 kg), Monitor - 8 lbs (4 kg), Hospital Cart - 58 lbs (26 kg)
Electrical
- Battery Pack: 24 V DC, 18 Ah
- Type: sealed lead acid maintenance free
- Battery Operating Time: 2 hours @ 120 bpm
- Battery Recharge Time: 18 hours maximum from completely discharge to full
- AC Power Requirement: 300 VA normal, 90-130 V, 50/60 Hz; 200-260, 50/60 Hz
Pneumatics
- System Compressor: dual head diaphragm pump brushless DC motor
- Patient Balloon Pump Gas: medical-grade helium
- Blood Detection: automatic protection of compressor pneumatics and isolation of blood in auto fill line
- Condensate Removal: automatic condensate removal and disposal via thermo-electric cooling
Display
- Type: gas plasma, 5.2" × 8.25" (132 × 210 mm)
- Channels: ECG and arterial pressure plus optional balloon pressure waveform
- Reference Line: 0-300 mm Hg/max
ECG
- Leads: I, II, III, aVR, aVL, aVF, V
- Frequency Response: 0.5-135 Hz output jack 0.5 - 12 Hz display
- Leakage Current: <10µA source current, <20µA sink current
- Defibrillator Protection: discharge levels up to 500 joules
- Recovery Time: trace returns to screen, 2 sec maximum
Trigger Source
- ECG Trigger Requirement: 120µV±µV at max. gain
- Pacer Rejection (no tails): ±2mV to ±700 mV duration 0.1 ms to 2 ms
- Pressure: adjustable between 7 mmHg to 30mmHg pulse amplitude
- Pacer A-V: A-V interval 80-225 ms rate < or equal to 125 bpm
- Pacer A: trigger requirement (same as ECG)
- Pacer V: < 185 bpm
- Internal: 40-120 in 5 bpm increments; default rate 80 ±1 bpm
- ESIS: automatic suppression with internal ECG amplifier
Pressure
- Pressure Sensitivity to Trigger: 7mmHg min pulse amplitude
- Transducer Requirements: sensitivity - 5.0µV/V/mmHg
- Excitation: +5V DC
- Zero range: ±120 mmHg
Inputs/Outputs
- ECG Connectors: 6-pin 5-lead AAMI proposed standard; patient input 3 - conductor phone jacks; monitor level
- Pressure Connectors: 6-pin male connector, Datascope-specified compatible transducer, 3-conductor phone jack; monitor level
- Voltage Interface: ECG = 1V/mV nominal arterial pressure = 1V/00 mmHg nominal
Trend Display
- Memory: 8 hours total; 30 minutes of 5 minutes average; 7.5 hours of 15 minutes average
- Data Available: Heart rate, peak systolic pressure, diastolic pressure, ean and augmented pressure
Recording Format
- Recorder: thermal array type recorder/2" thermal paper
- Waveform Presentation: ECG, arterial pressure, optional balloon pressure waveform
- Graphic Presentation: heart rate trend, pressure trends
- Vent Marker: trigger point.
- Inflate interval
Annotations
- ECG: lead
- Pressure: scale
- Parameters: heart rate, systolic, diastolic, mean augmented pressure
- Trend: same as trend display
