Details

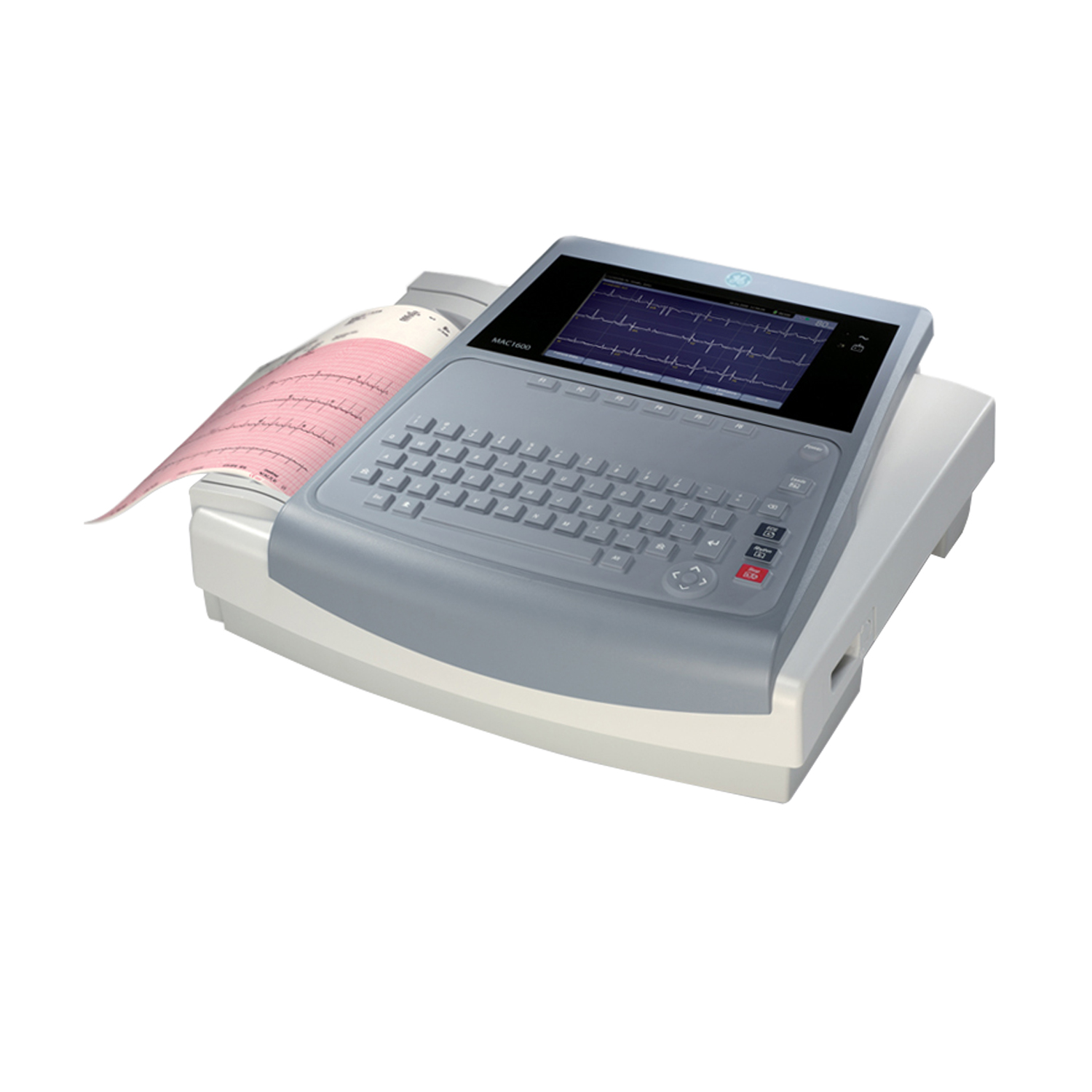

The GE MAC 1600 is a high-tech, user-friendly electrocardiograph that’s capable of fulfilling all ECG needs in a variety of hospital, clinic and office environments. Developed with input from around the world, the MAC 1600 is part of GE’s legacy of innovation in ECG acquisition and analysis. It combines quick assessment of the ECG signal quality with an easy connection to GE CS and MUSE Information Systems.
With a vivid 7” color display and soft key menu, the MAC 1600 is intuitive to learn and can adapt to each user’s specific needs. The digital onscreen review saves time and money by reducing wasted paper and the need for costly repeat ECGs. Request a quote or learn more about the GE MAC 1600 Resting ECG System by speaking with an Med Vest Technology equipment expert today.
Features
- Onscreen review saves time and money by reducing paper waste and costly repeat ECGs.
- Bright 7” display gives a crystal clear review of the ECG waveform.
- Lithium Ion battery allows the MAC 1600 to be used in transport for up to 3 hours.
- A user ID and password protect sensitive patient data, keeping within HIPAA requirements.
- Can be configured for resting ECG, rhythm, arrhythmia and exercise testing, including the ability to view ECG analysis at anytime.
- Intuitive soft key menu makes inputting patient data fast and easy.
Specifications
Display
- Type: 7" TFT LCD module, widescreen
- Display Resolution: 800 x 480 pixels
- WVGA Resolution: Same as 800 x 480
- Color
- VGA port for external CRT monitor
Physical Specifications
- Height: 15 in/400 mm
- Width: 13.8 in/350 mm
- Depth: 6 in/150 mm
- Weight: Approximately 6.0 kg, with battery installed
Power Supply
- Voltage: 100 to 240 VAC, +10, -15%
- Current: 0.5A at 115 VAC
- Current: 0.3A at 240 VAC
- Frequency: 50 - 60 Hz +/- 10%
Battery
- Type: User Replaceable, 16.4V @ 2300 AH, Lithium Ion
- Capacity: 50 single page reports, (typical) 3 hours continuous display (without printing)
- Charge Time: Approximately 2.5 hours from total discharge
Acquisition & Analysis
- Analog acquisition module
- Marquette 12SL measurements & interpretation (option)
- Marquette 12SL Hookup Advisor
- 4.88 μV resolution
Writer
- Resolution: Vertically - 8 dots/mm; Horizontally - 40 dots/mm @25 mm/sec
- Paper Type: Thermal A4 & US letter, Z-fold
- Writer Speed: 5, 12.5, 25, 50 mm/sec
Processing
- 12 lead simultaneous analysis
- 500 or 1000 samples/sec
Memory
- Internal/external 100 ECGs (option)
