Details
Premium mobile c-arm with 100 times the image computing power of previous OEC models

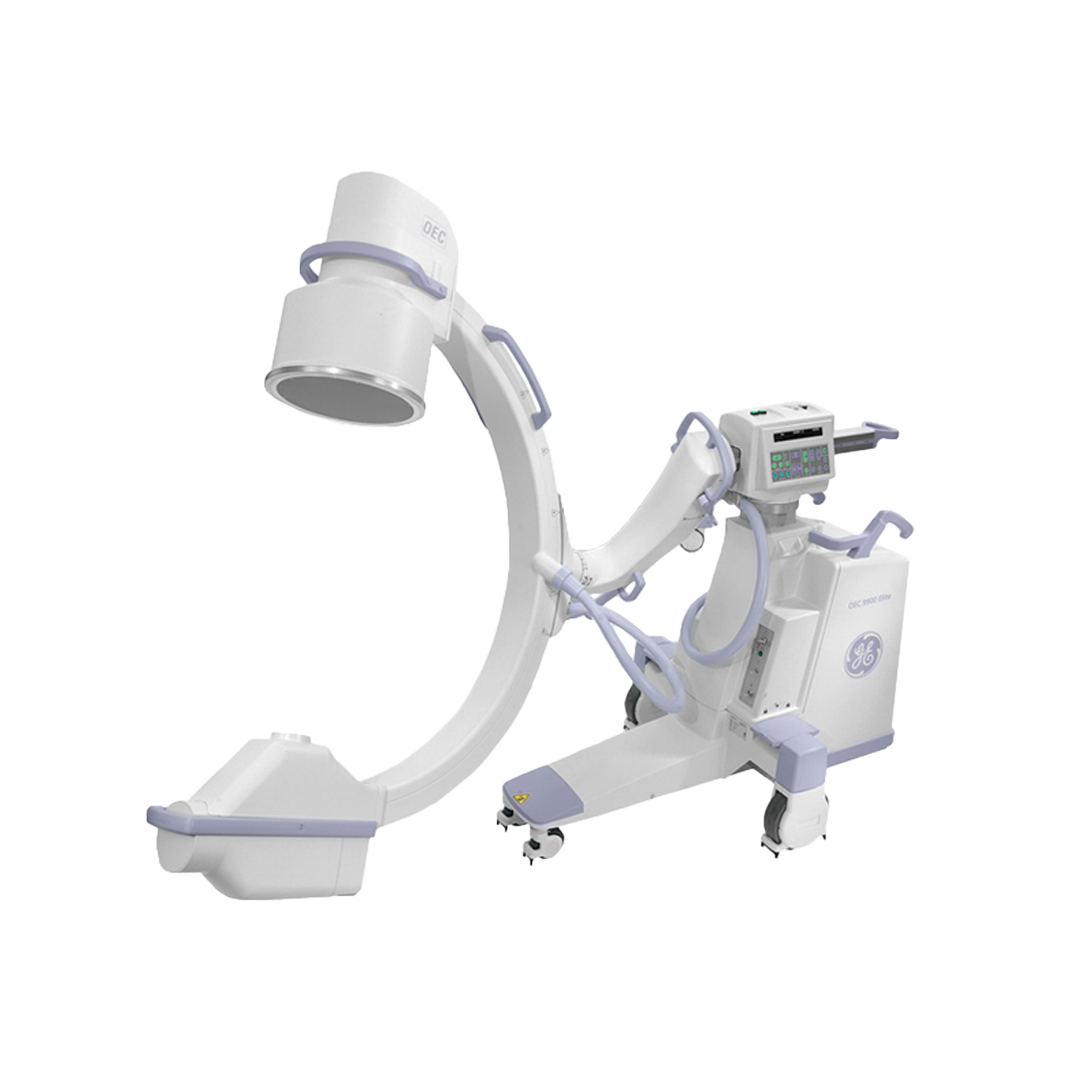

The GE OEC 9900 is an industry-leading c-arm that provides 1k x 1k high resolution imaging in a convenient, mobile configuration. The unit’s deep arch allows for premium access for cardiovascular and pain management procedures. High definition monitors mounted on an articulating arm allow clinicians to view imaging results from anywhere in the procedure suite.
The GE OEC 9900 Elite Mobile C-arm is available New through Med Vest Technology. For more information, contact an Avante representative today.
Features
- Mobile c-arm provides excellent image equality and an easy-to-use interface.
- 1k x 1k high resolution imaging technology on a convenient, mobile system.
- Provides high quality images while maintaining low dosage.
- Ideal for any hospital or outpatient setting.
- Versatile unit designed to handle both simple and challenging imaging cases.
- C-arm features a deep arch, allowing for premium patient access for cardiovascular and pain management procedures.
- Quick and easy positioning of the C-arm with superior articulation capabilities.
- Simple user interface helps to reduce procedure time and improve efficiency.
- Unique SmartView pivot joint allows clinicians to achieve true lateral imaging, minimizing the need for repeated exposures.

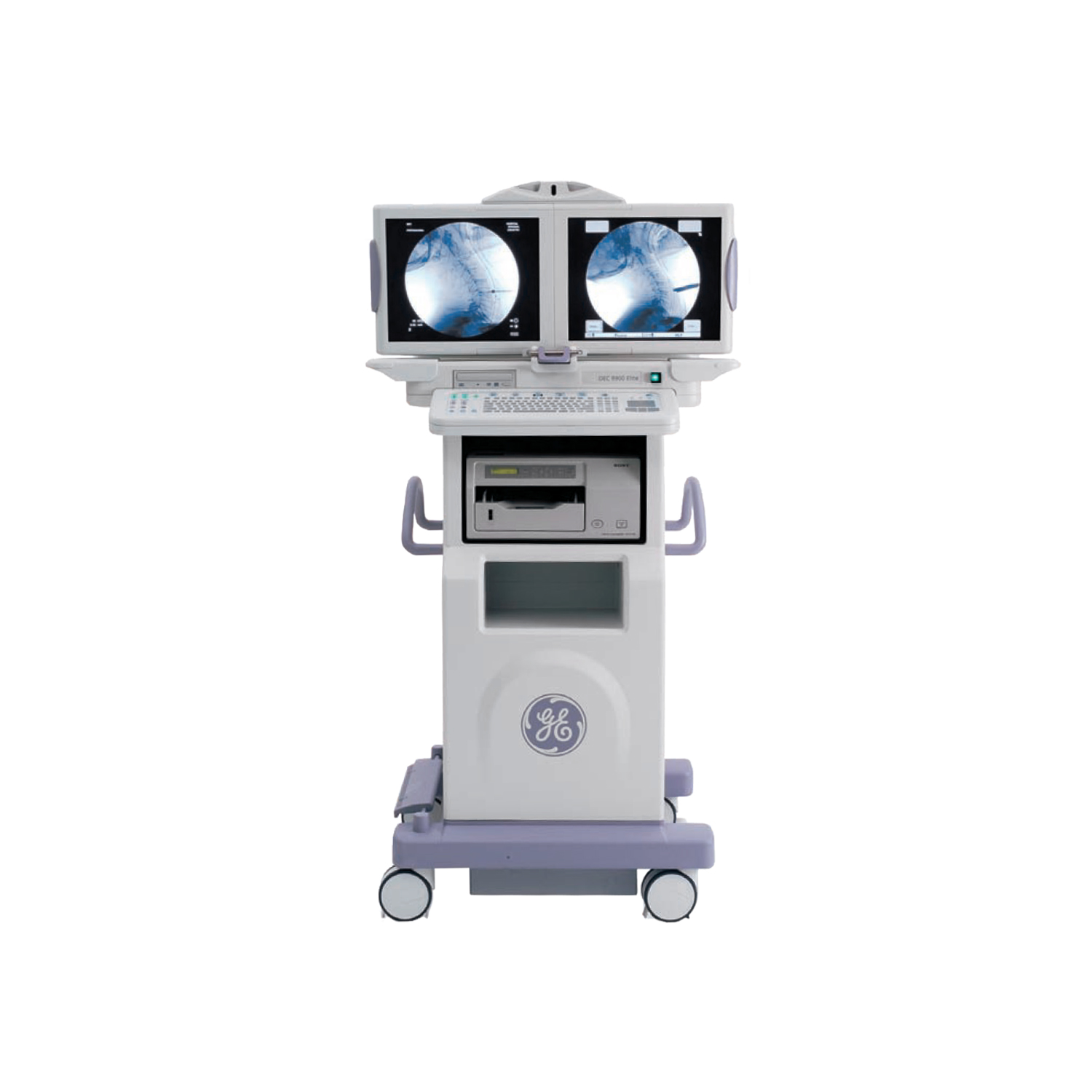

- Flat panel monitors mounted on an articulating arm, allow viewing from any angle in the imaging suite.
- Dual control mainframe and left-to-right layout means easy access for fast operation.
- Dynamic Range Management (DRM) technology provides uncompromised image quality.
- Image for longer periods of time with unique x-ray tube and cooling system.
- Unique battery buffer technology allows for longer c-arm on-times.
- OEC 9900 system features 100 times more image computing power than previous C-arms in this series.
- Preset imaging profiles help to enhance features of interest.
- Remote service connectivity performs system diagnostics.
Specifications
X-ray System Generator
- 60kHz high frequency
- 15kW power
- Up to 120kVp
- Up to 75mA for radiographic film exposure
- Continuous high level fluoro (HLF) up to 20mA
- Digital spot up to 75mA
X-ray Tube
- Rotating anode X-ray tube
- 0.3mm and 0.6mm focal spots
- Anode heat capacity: 300,000 HU
- Anode cooling rate: 85,000 HU/min.
- Housing heat capacity: 1,600,000 HU
- Standard housing cooling: 15,000 HU/min
- Passive housing cooling system: 22,500 HU/min. (Standard on 12 inch (31 cm) I.I. systems. Optional on 9 inch (23 cm) systems.
Digital Image Rotation
- Digitally adjusts image display
- Automatic image update: Image rotation | Image reversal (side-to-side) | Image invert (top-to-bottom)
- Image positioning without additional exposure
PreView Collimator
- On-screen collimator position indication
- PreView iris collimator
- PreView Tungsten rotatable double leaf collimator
- Adjusts collimators without X-ray exposure
9-inch Image Intensifier
- Tri-mode 9”/6”/4.5” (23cm/15cm/11cm) image intensifier
- Minimum central resolution (at the monitor): 9” (23cm): 2.2 lp/mm | 6” (15cm): 3.0 lp/mm | 4.5” (11cm): 3.5 lp/mm
- DQE: 65% (typical)
12-inch Image Intensifier
- Tri-mode 12”/9”/6” (31cm/23cm/15cm) image intensifier
- Minimum central resolution (at monitor): 12” (31cm): 1.6 lp/mm | 9” (23cm): 2.2 lp/mm | 6” (15cm): 2.6 lp/mm
- DQE: 65% (typical)
Precise Imaging Profiles
- 9800
- General
- Orthopedic
- Spine
- Cardiac
- Vascular
- Bolus Chase
Video Camera
- High resolution 1k x 1k CCD camera
- Full frame capture
- Motorized rotation
- On-screen orientation indicator (real-time feedback without fluoro)
- Left-right image reversal
- Top-bottom image invert
