Details

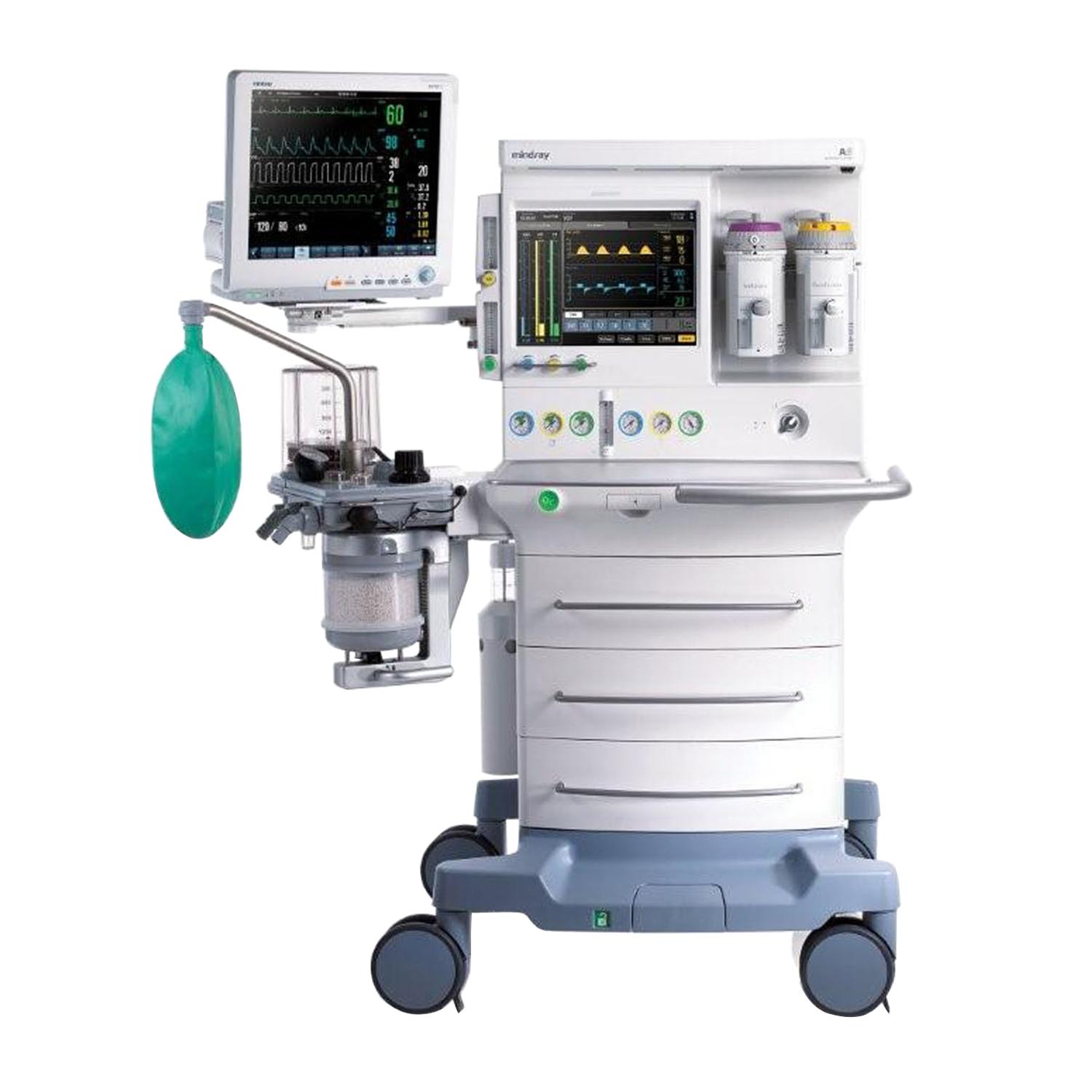

The Mindray A5 Anesthesia Machine provides today’s clinicians with a variety of advanced ventilation modes, an easy-to-use interface and an ergonomic design. The A5 features a 15” touch screen that allows operators to navigate easily between ventilation modes, allowing caregivers to spend more time with patients. The A5 is capable of outputting data in HL7 protocol, the industry-recognized format for EMR systems
- 15-inch color LCD display with touchscreen
- Graphical user interface for easy navigation
- Offers continuous and intermittent anesthesia flow
- Manual and automatic ventilation modes:
- Volume Control Ventilation (VCV)
- Pressure Control Ventilation (PCV)
- Synchronized Intermittent Mandatory Ventilation (SIMV-VC, SIMV-PC)
- Pressure Support (PS)
- Manual
- Manual and automatic ventilation modes:
- Electronically controlled PEEP
- 2 large waveforms clearly display pressure and flow, or spirometry loops
- Virtual flow tubes for clear readings
- Work table light for increased visibility
- Mounting rails to connect external patient monitors
- Rear 3-cylinder mounts
- Cylinder and central pipeline gas supply connections available for gas input
- Heated breathing system with adjustable swivel, side hose ports and single turn APL valve
- Large stainless steel work surface
- Automatic leak detection for added safety
- USB mouse support serves as a backup to both the touchscreen and touchpad (on versions 2.01.00 and higher)
- Available with network upgrade
Specifications
Physical
- Dimensions: 55.1” (140 cm) H x 41.3” (105 cm) W x 31.7” (80.5 cm) D
- Weight: 331 lbs (150 kg) without vaporizers and gas cylinders
- Work Surface: 26” (61.6 cm) W x 15” (38 cm) D x 33.5” (85 cm)
- Top Shelf Dimensions: 26” (61.6 cm) W x 15” (36.2 cm) D
- Top Shelf Weight Capacity: 88 lbs (40 kg)
- Side Mounting Rails: supporting weight 25 kg at a maximum distance of 0.41 m
- Bag Arm: 12.3” (31.2 cm) L x 45.3” (115 cm)
- Bag Arm Swiveling angle: 150 ± 10°
- Drawers (internal dimensions): 5.3” (13.5 cm) H x 17.3” (44 cm) W x 15.2” (38.5 cm) D
- Caster Diameter: 6” (15 cm)
- Brake: central brake with lock/unlock indicator
Environmental
- Operating Temperature: 50 to 104°F (10 to 40°C)
- Storage Temperature: (-4 to 140°F) (-20 to +60°C)
- Oxygen Sensor: -20 to +50°C
- Humidity (Operating and Storage): 15 to 90% RH, non-condensing
- Atmospheric Pressure (Operating): 70 kPa to 106.7 kPa
- Atmospheric Pressure (Storage): 50 kPa to 106.6 kPa
Electrical
- Power Supply Input Voltage: 100 to 120 VAC @ 50/60 Hz
- Power Supply Input Current: 12 A maximum for A5 unit, 10 A maximum for A5 auxiliary outlets
- Power Consumption: Approx. 200 VA (not including auxiliary outlets)
- Power Cord: 5 ±0.05 m (length), hospital grade
- Battery Type: 2 Sealed Lithium-ion, 11.1 V, 4.5 Ah
- Battery Charge Time: 8 hours max from an initial charge of 10% (new battery)
- Battery Charging occurs whenever AC is applied
- Number of Outlets: 4
- Output Voltage: corresponds to power supply input voltage
- Output current of each auxiliary outlet: 3 A
- Output current total: 10 A
- Breaker Rating per Auxiliary Outlet: 3 A
- Breaker Rating Total: 10 A
- Communication Port (SP1): DB9 male connector on the rear, provides non-isolated output serial RS232C interface
- Network Port (CS1): RJ-45 network port
- SB Ports (SP1, SP2): Caution: Do not connect any devices to the SB ports other than Mindray approved USB storage devices and a supported USB mouse in system version 02.01.00 and higher
- Data Port (DP1): One test port for connection of calibration equipment by a Mindray-authorized service representative
