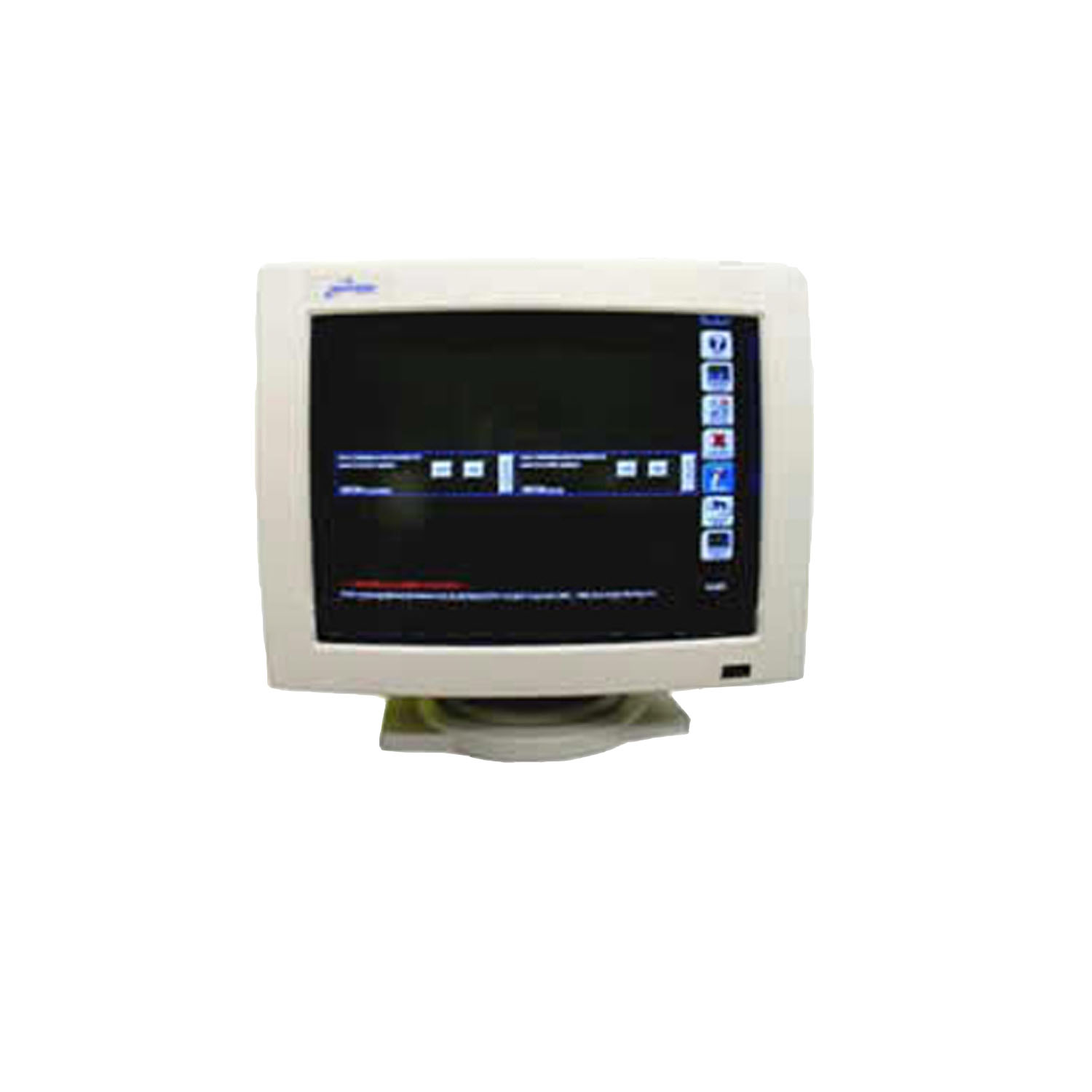

Spacelabs 90385 UCW Monitor
Spacelabs 90385 UCW Monitor
0 item is in your cart. View cart now
All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.
Details
Features
- Color, Touchscreen UCW
- ECG
- NIBP
- SpO2
- IBP
- Temperature
Specifications
General
- Touchscreen Control: With the exception of power (ON/OFF), all controls are on screen touch-keys; touch is sensed by infrared optical devices
- Waveform Capacity: Bedside - 4, 5, 6, 7 or 8 waveforms. Central - 4, 5, 6, 7, 8, 12 or 16 waveforms
- Module Capacity: Up to 12 PCMS modules with 6 remote module housings
- Parameter Capacity: Up to 3 times the number of waveforms purchased (maximum of 24 parameters)
- Trends: 24 hours of trended data can be graphically displayed in 1, 2, 6, 12 or 24-hour segments; data is stored in one minute resolution
- Remote View/Alarm Watch: Provides waveform display from a remote bedside or telemetry patient on the PCIS network on request, or in the event of an alarm from up to 32 selected beds; a UCW bedside or telemetry channel can be remotely viewed by up to 16 network devices simultaneously.
- Display: Area: 8.4" (21.3 cm) high × 11.2" (28. cm) wide; Resolution: 1024 x 768 pixels. Trace height: 2" (5 cm)
- Physical Dimensions: 14" high × 18.3" deep × 14.6" wide (35.5 × 46.4 × 37 cm); Weight: 35.8 lbs (16.3 kg)
