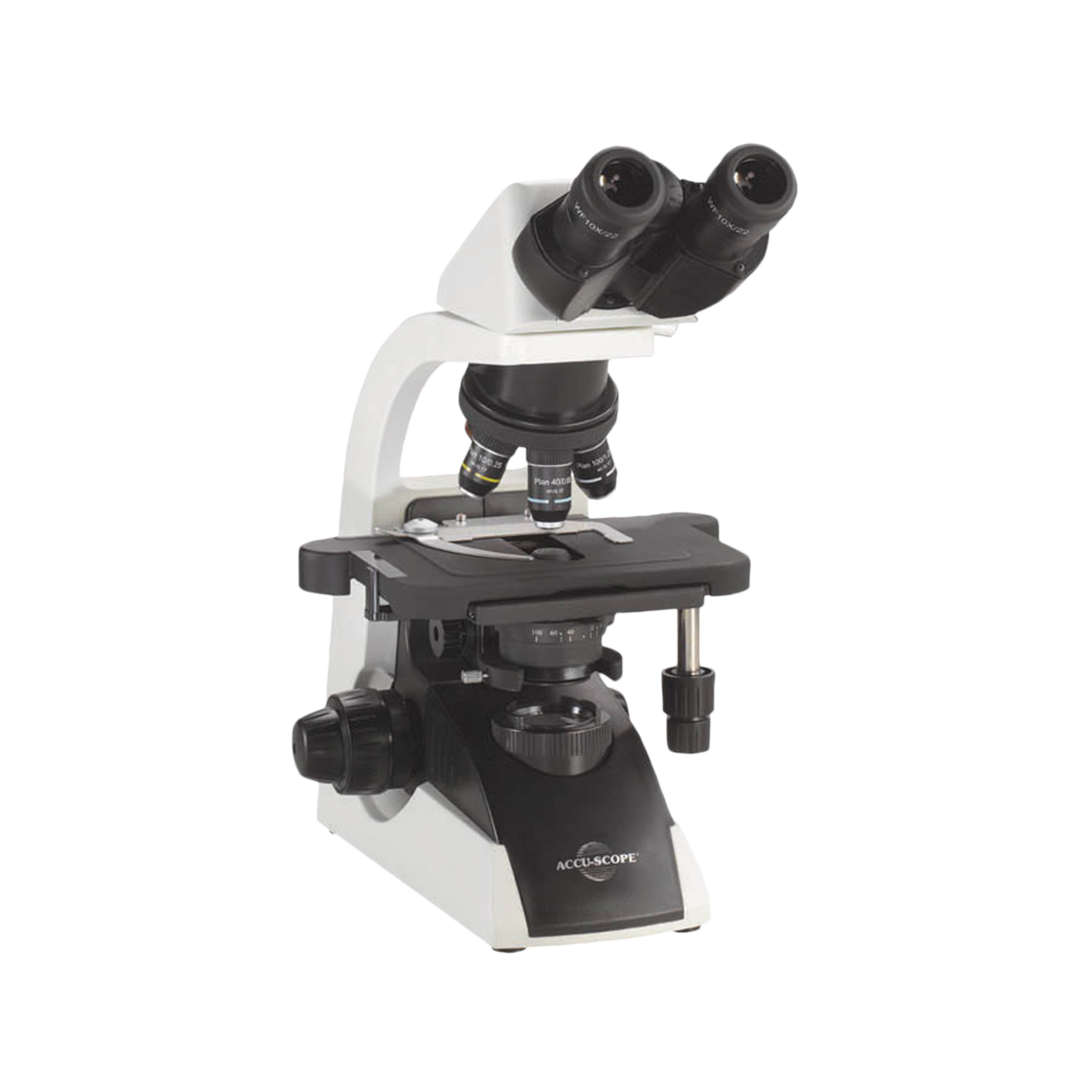

Accu-Scope 3012 Microscope
Accu-Scope 3012 Microscope
0 item is in your cart. View cart now
All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.
Details
The Accu-Scope 3012 is a high quality, upright biological microscope with exceptional optical performance and functional ergonomic features. The most advanced optical and mechanical components are incorporated to offer exceptional value, versatility and performance to meet the exacting requirements of life science professionals.
Features
- Accuscope's Infinity Optical System, which excels at correcting chromatic abberation and curvature of the field of view.
- Excellent optical corrections and very flat optical performance.
- A new series of Plan Achromat objectives have been designed especially for the accu-scope 3012.
- Clear, bright images at every magnification.
Specifications
Optical System
- Infinity Optical system
Magnification
- 40-1000x, 1500x with purchase of optional 15x eyepieces
Illumination
- 12V-20W halogen lamp, lamp changeable by removing the collector unit
Coarse & Fine Focus
- Coaxial coarse/fine focusing knob
Eyepiece Tube
- Binocular tube inclination: 30 degrees, 360 degree rotatable Siedentopf-type
- Interpupillary distance: 47-75mm
Eyepiece
- WF10X/22mm or Optional WF15X/12mm
Condenser
- Abbe condenser, N.A.1.25 (aperture diaphragm with position guide marking for respective objectives)
Nosepiece
- Quintuple reverse revolving mechanism with multiple ball bearing
Objectives
- Infinity plan achromat 4x, N.A. 0.1, 10x,N.A. 0.25, 40x, N.A.0.65, 100xR oil N.A. 1.25
Stage
- Rackless rectangular 188X150mm surface stag. Cross travel 78X54mm using low-positioned X/Y coaxial control knob
Substage
- Adjustable vertical condenser movement range: 10mm
Optional Accessories
- Phase contrast attachment, Darkfield Polarization, Storage case, 20x and 50xR oil objectives.
