Details

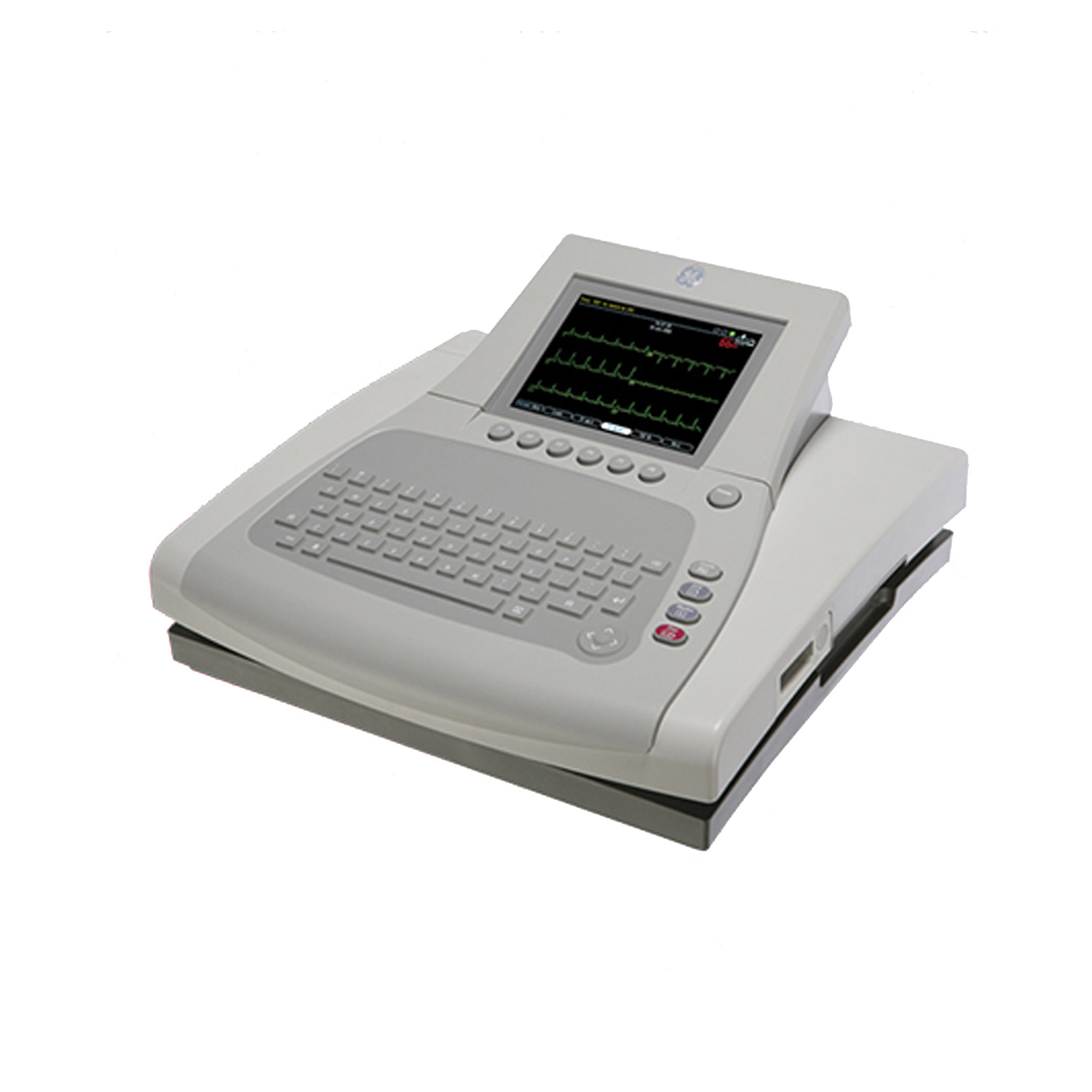

The GE MAC 3500 Resting ECG System offers users the best technology on a 12 lead ECG analysis system. The MAC family of ECGs is recognized as one of the hardest-working resting ECG systems in the industry, with a trusted reputation and a track record for performance. The MAC 3500 builds on this reputation with a system that is easy to use, scalable and flexible enough to fit the needs of any hospital, clinic or physician office.
The MAC 3500 ECG is equipped with an easy to read color display that shows 12 leads at a time. The Marquette Hook-up Advisor signal quality analysis program helps reduce poor waveform quality, while the 12SL with Gender-Specific interpretation makes detecting AMI in women easier. To reduce errors, verify patient identification and automate data input, the MAC 3500 is also equipped with a barcode and magnetic card reader. Speak with an Med Vest Technology equipment expert today to request a quote or learn more about the GE MAC 3500 Resting ECG System.
Features
- Detailed data is collected by the machine in a 12-lead resting EKG analysis with an easy-to-read color display.
- Easy to use, scalable and flexible enough to fit the needs of any hospital, clinic or physician office.
- 12SL with Gender-Specific interpretation makes detecting AMI in women easier.
- Marquette Hook-up Advisor signal quality analysis program helps reduce poor waveform quality.
- Barcode and magnetic card reader help reduce errors, verify patient identification and automate data input.
- Include many of the distinctive features found in previous MAC products, such as a common user interface and operation.
Specifications
Display Screen
- 6.5 in (165 mm) diagonal graphics backlit AM LCD (color optional)
- 640 x 480 pixels with waveform enhancement
- Data: Heart rate, patient name, ID, clock, waveforms, lead labels, speed, gain and filter settings, warning messages, prompts, and help messages. 6 leads maximum.
Dimensions
- Height: Approximately 7.6 in (19.3 cm)
- Width: Approximately 15.6 in (39.6 cm)
- Depth: Approximately 15.0 in (38.1 cm)
- Weight: Approximately 7.0 kg (15.5 lbs), including battery, without paper
Electrical Power
- Power supply: AC or battery operation
- Voltage: 100 to 240 VAC +10, –15%
- Current: 0.5A @ 115 VAC, typical; 0.3A @ 240 VAC, typical
- Frequency: 50 to 60 Hz ±3Hz
- Battery Type: User replaceable, 18V @ 3.5 AH ±10% rechargeable NiMH
- Battery Capacity: 100 single page reports, (typical) or 6 hours continuous display (without printing)
- Battery Charge Time: Approximately 4.5 hours from total discharge (with display off)
Processing
- ECG Interpretation: Marquette 12SL ECG Analysis Program for Adults and Pediatrics
- Computerized Measurements: 12-lead analysis
- ECG Analysis Frequency: 500 samples/second (sps)
- ECG Storage: 50 ECGs in internal memory
- External Archiving: Optional secure digital card for 50 ECGs max; Supports 64 MB to 1 GB SD cards
- Digital Sampling Rate: 4,000 samples/second/channel
- Pre-acquisition: Provides 10 seconds of instantaneous ECG acquisition
- Dynamic Range: AC Differential ± 5mV, DC offset ±300 mV
- Resolution: 4.88 μV/LSB @ 250 sps; 4.88 μV/LSB @ 500 sps
- Frequency Response: [–3] dB @ 0.01 to 150 Hz/li>
- Common Mode Rejection: >140 dB (123 dB with AC filter disabled)
- Input Impedance: >10MΩ @ 10 Hz, defibrillator Protected
- Patient Leakage: <10 μA
- Pace Detect: Orthogonal LA, LL, and V6; 750 μV @ 50 μs
- Special Acquisition Functions: Disconnected lead detection, electrode impedance, excessive AC noise, baseline wander and muscle tremor messages
- Heart Rate Meter: 30 to 300 BPM ±10% or 5 BPM, whichever is greater. Heart rates outside this range will not be displayed.
Writer
- Writer Technology: Thermal dot array
- Writer Speeds: 5, 12.5, 25, & 50 mm/s (same as displayed)
- Number of Traces: 3, 6, or 12 user selectable (same as displayed)
- Writer Sensitivity/Gain: 2.5, 5, 10, 20, 10/5 (split calibration) mm/mV (same as displayed)
- Writer Speed Accuracy: ±10% at 5 & 12.5 mm/s; ±2% at 25 & 50 mm/s
- Writer Amplitude Accuracy: ±5%
- Writer Resolution: Horizontal 1000 dpi @ 25 mm/s, 200 dpi vertical
- Paper Type: Thermal, Z-fold, perforated, fan fold, 300 sheets/pack
- Paper Size: A Size: 8.45 in x 11 in, (214.63 mm x 280 mm); A4 Size: 8.27 in x 11.7 in (210 mm x 297.5 mm)
