Mindray Passport 12 Patient Monitor
Mindray Passport 12 Patient Monitor
0 item is in your cart. View cart now
All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.
Details

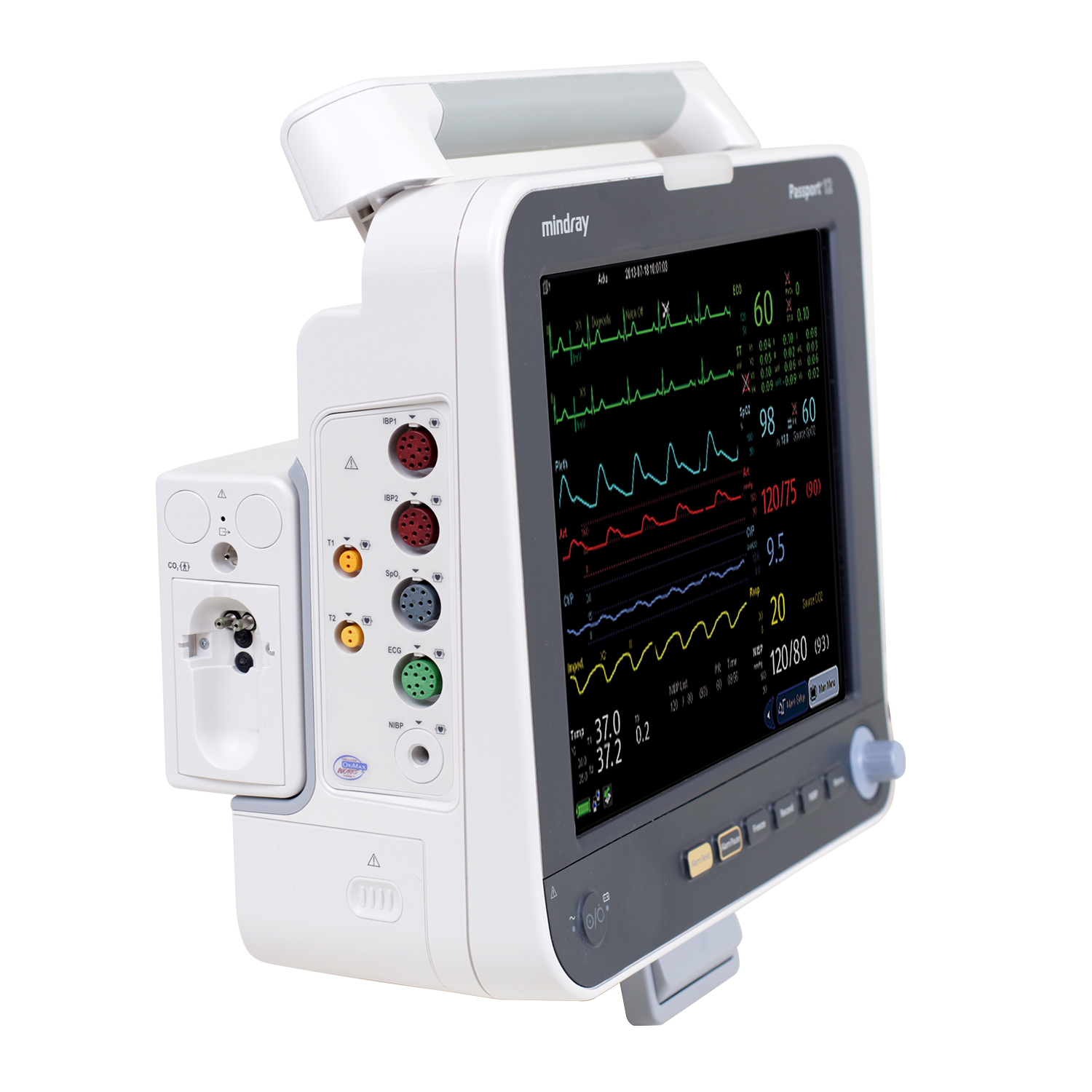

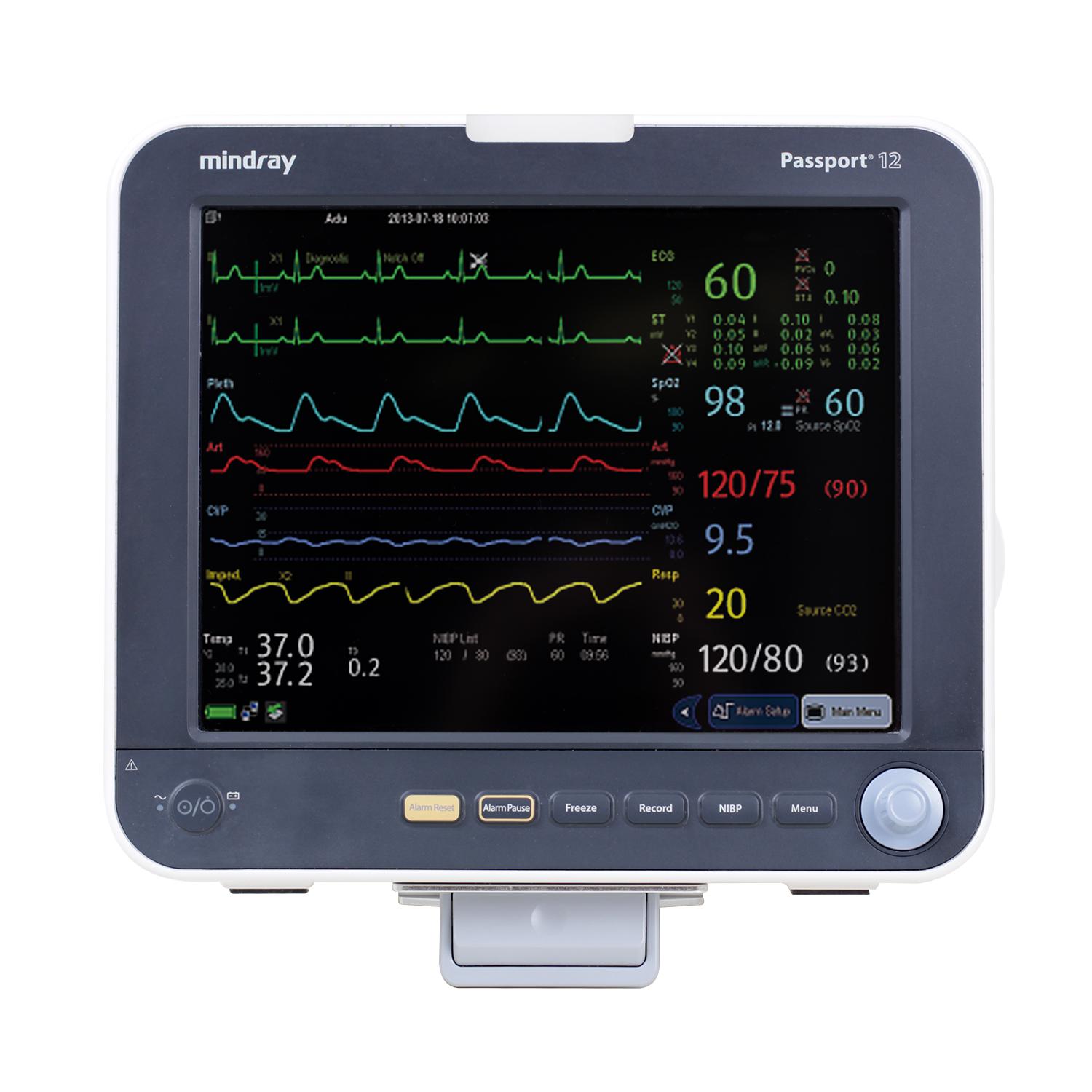

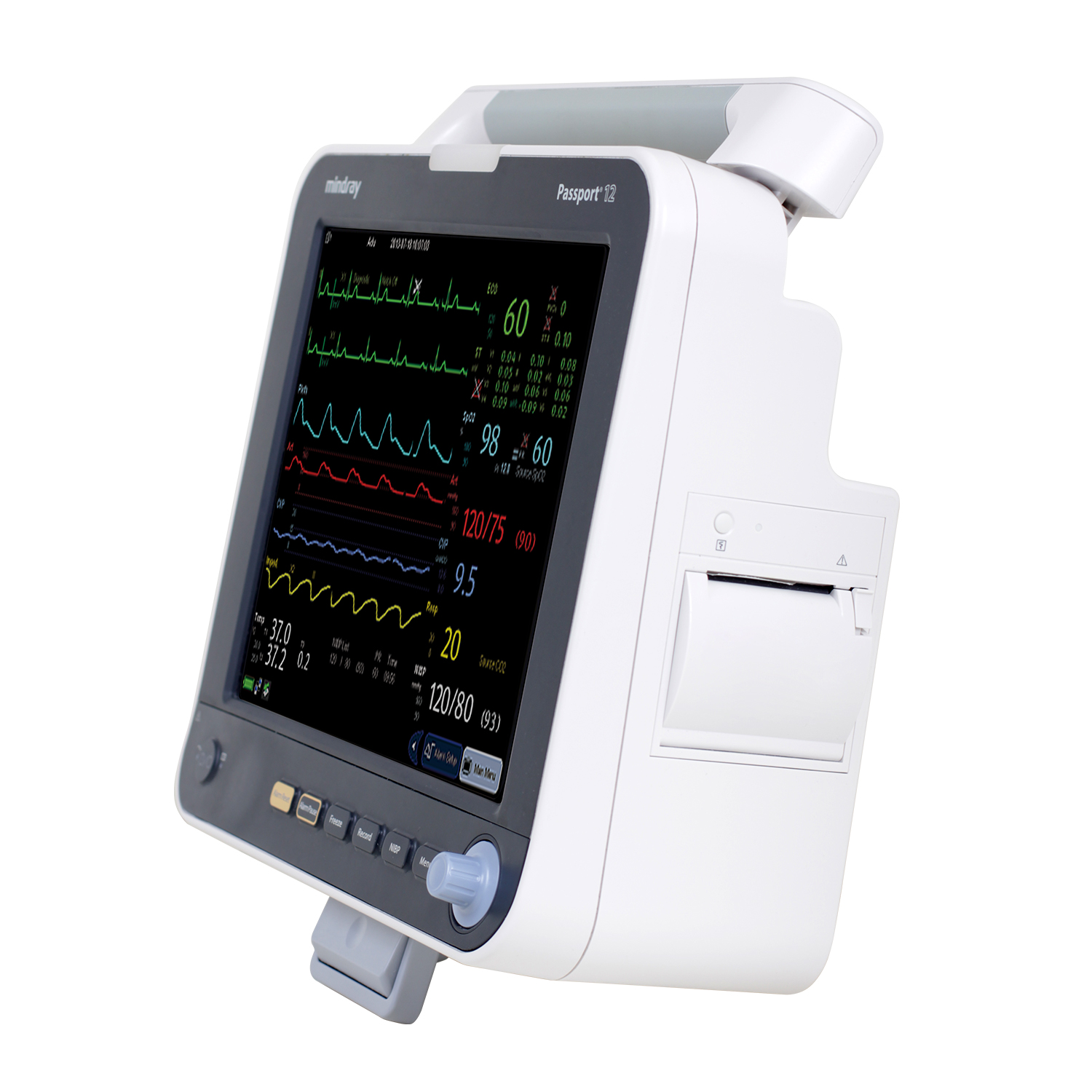

The Mindray Passport 12 is a patient monitoring system designed for the modern healthcare facility. The monitor comes standard with 3- or 5-lead ECG, Masimo SET, SpO2, 2 IBP, NIBP, respiration, temperature, and an integrated recorder, but is available with a range of modular parameter options for more advanced monitor functions. The ergonomic carrying handle and varied mounting options allow clinicians to use the monitor in a variety of care settings.
The Mindray Passport 12 Patient Monitor is available New through Med Vest Technology. For more information, contact an Med Vest Technology representative today.
Features
- 12-inch high resolution color touchscreen display.
- Displays up to 8 waveforms.
- Standard parameters include: 3- or 5-lead ECG, Masimo SET, SpO2, 2 IBP, NIBP, RESP, TEMP, and an integrated recorder.
- Features extensive data storage for trend data, alarms, events, and NIBP measurements up to 48 hours.
- Connects to BeneVision Central Station.
- Integrates with eGateway for communication to EMR.
- Defibrillator synchronization.
- Convenient, ergonomic carrying handle and multiple mounting options.
- Optional — Nellcor OxiMax SpO2.
- Optional — ST and Arrhythmia analysis with atrial fibrillation detection available.
- Optional — Wireless 2.4 GHz (802.11b/g/n) available.
Specifications
Physical Dimensions
- Monitor Size: 10.9 H x 5.4 D x 12.7 W in
- Weight: 10 lb (standard parameters configuration, including 2 lithium batteries and a recorder)
Electrical Ratings
- Power Supply: AC power, battery
- AC Power: 100 to 240 VAC (±10%)
- Current: 1.3 to 0.5 A
- AC Power Input Frequency: 50/60 Hz (±3Hz)
Environmental Conditions
- Temperature Range (Operating): 10°C to 40°C
- Humidity Range (Operating): 15% to 95%, non-condensing
- Altitude Range (Operating): (-1,000 to 9,841 feet ASL) | 1,074 hPa to 700 hPa | (806 mmHg to 394 mmHg)
- Temperature Range (Storage): -20°C to 60°C
- Humidity Range (Storage): 10% to 95%, non-condensing
- Altitude Range (Storage): (-1,000 to 15,000 feet ASL) | 1,074 hPa to 700 hPa | (806 mmHg to 394 mmHg)
