Ohmeda 7800 Anesthesia Ventilator

Brand: Datex-Ohmeda

Type: Anesthesia Ventilators

Web ID: 17

Condition: Brand New

View Accessories

0 item is in your cart. View cart now

Need help choosing?

Ask an Equipment Expert

(781) 302-6019

Listing Terms & Conditions

All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.

Details

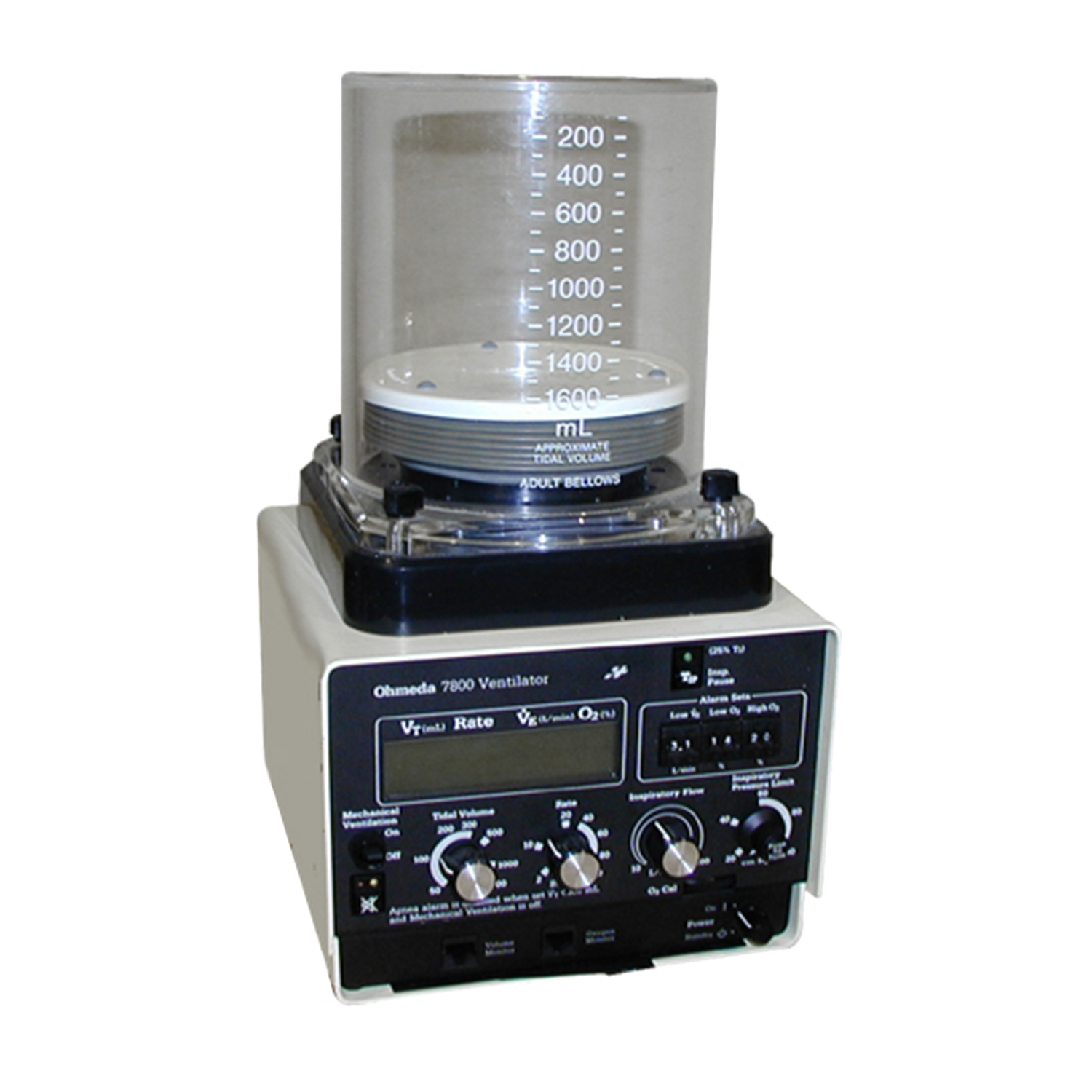

The Ohmeda 7800 Anesthesia Ventilator is available New from Med Vest Technology. This ventilator can be utilized on adult patients with a pediatric option. The 7800 is powered by AC with battery back-up. The liquid crystal display ensures a clear display screen. Functions are microprocessor controlled and there are audible and visual alarms. The vent provides Oxygen, Volume, and Airway Pressure monitoring.

Features

Electronic Ventilator
Wide performance range
Integrated breathing system management
Integrated safety
System/operator interactivity
Multiple configurations

Specifications

Physical Weight & Dimensions

Height: 15.6 inches (39.5 cm)
Width: 8.8 inches (22.2 cm)

Depth: 11.8 inches (30 cm)
Weight: 20.2 lbs (9.2 kg)

Electrical

Power Consumption: 35 watts maximum
Power Supply: User selectable line voltage: 100/120/220/240

Battery Backup: Internal rechargeable batter, 20 minutes minimum operation for full charge

Monitoring

Display Type: Liquid crystal
Circuitry: Microprocessor control

Interface: RS-232C serial output

Controls

Tidal Volume: 50-1500 mL
Rate: 2-100 B/min

Inspiratory Flow: 10-100 L/min
Inspiratory Pressure Limit: 20-100 cm H2O
Inspiratory Pause: 25% T
