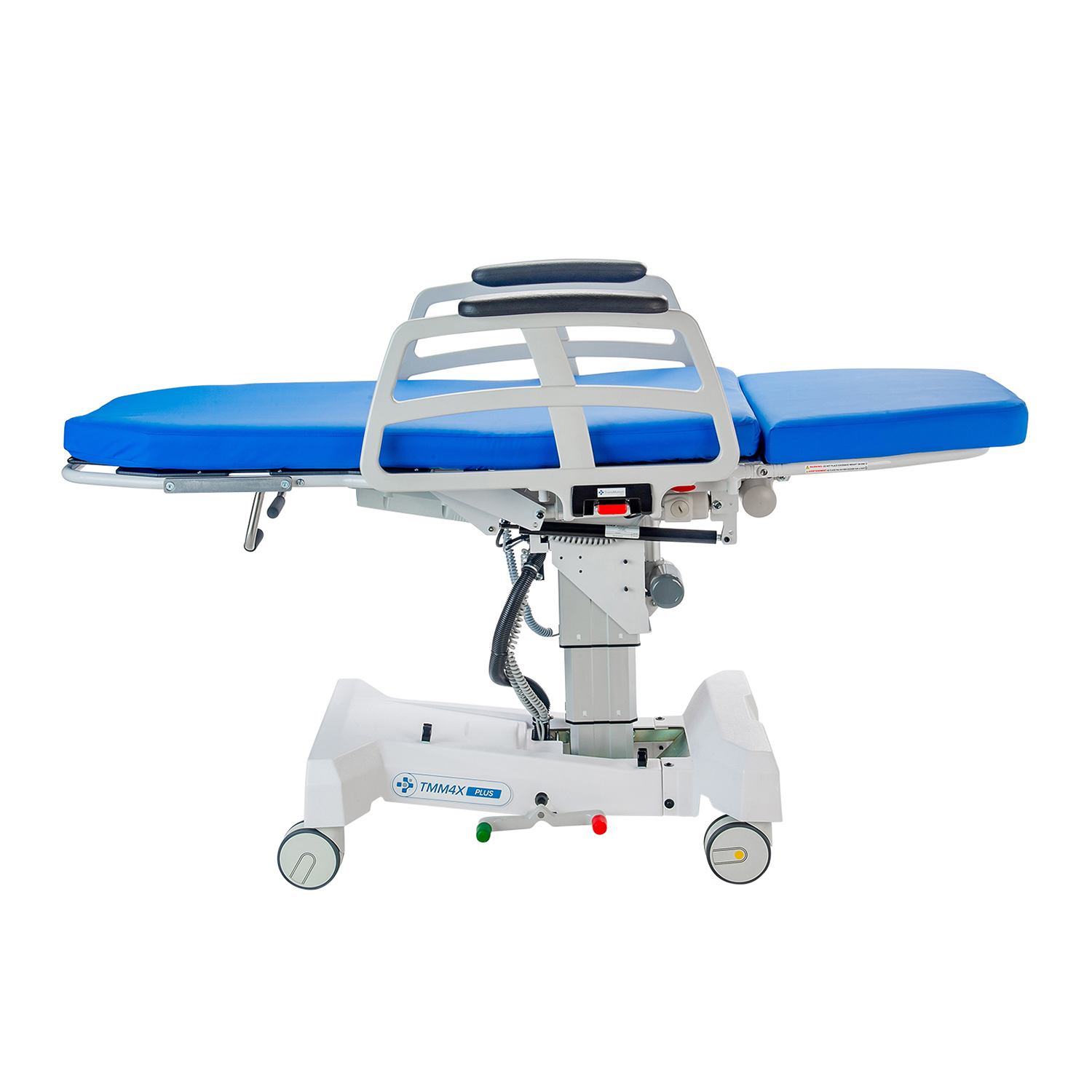

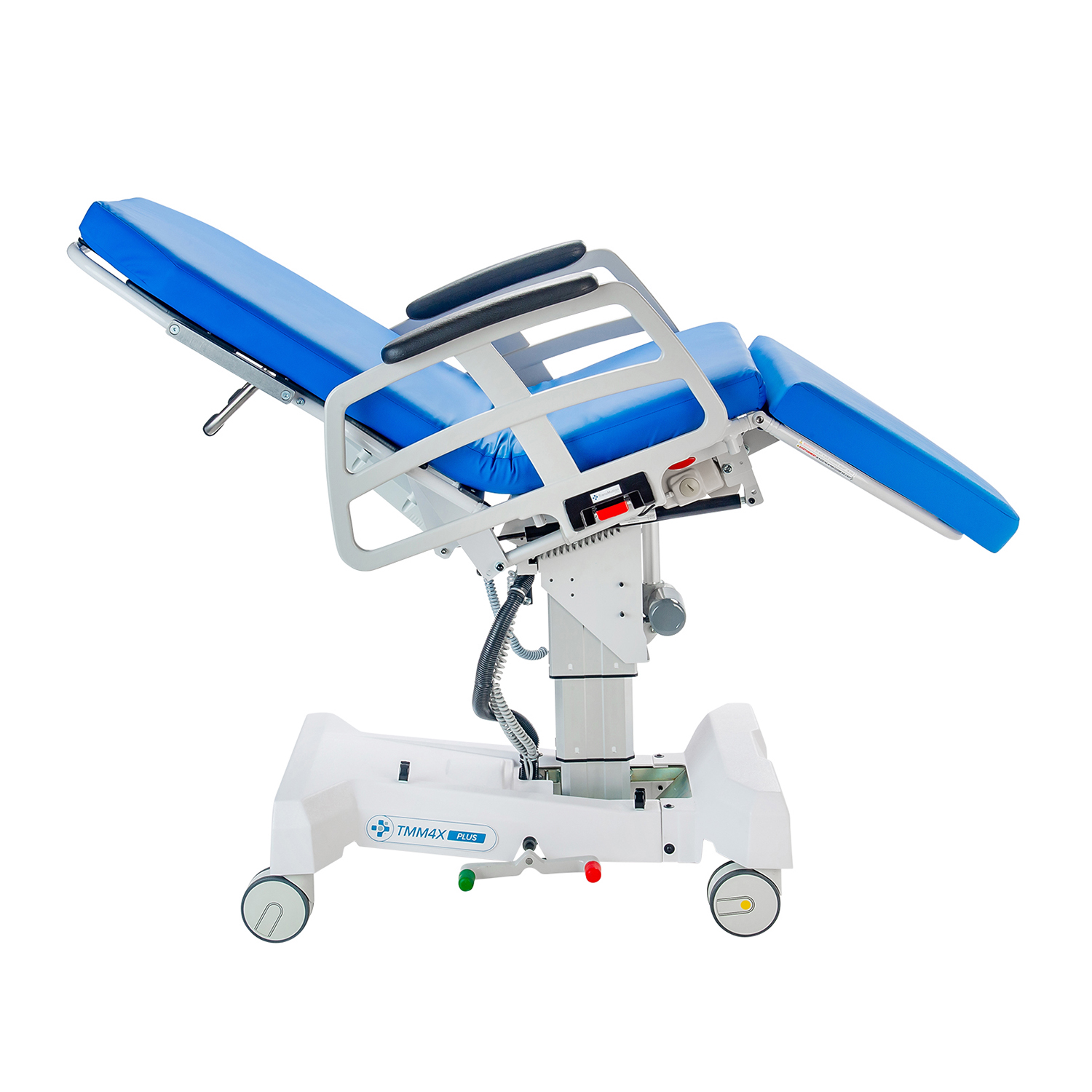

Transmotion TMM4 PLUS Multi-Purpose Stretcher-Chair
Transmotion TMM4 PLUS Multi-Purpose Stretcher-Chair
0 item is in your cart. View cart now
All product and company names are trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement or sponsorship by them.
Details
TransMotion Medical is committed to reducing staff injury and patient fall risk while improving throughput. Handheld, pendant-controlled powered leg, back and height adjustments eliminate hydraulic, pneumatic or manual positioning thereby reducing the risk associated with those movements. With the ability to convert from chair to stretcher configuration at the push of a button, patients can travel from admission to procedure to discharge on ONE SURFACE. Reducing or eliminating patient transfers can minimize the risk of injury to patients and staff as well as reduce the amount of equipment needed to complete the care cycle.
Exceptional Powered Patient Positioning for safe patient handling
Push-Button Pendant Control for smooth and safe operation
Large Radiolucent Back section for imaging procedures
Memory Foam Cushions for enhanced patient comfort
swing-and-tuck side rails for easier and safer patient ingress/egress
Manual quick release back
Space-Saving Footprint
Quick-Change Battery and wall-mount charger
Specifications
Height Range: 25"- 33"
Over All Width: 30"
Surface Length: 77"
Weight Capacity
Chair weight: 500Lbs
205Lbs*
Maximum Patient Weight: 500 lb (227 kg)
Seat Height - Low: 24.3” (61.7 cm)
Seat Height - High: 32.2” (81.8 cm)
Back Height: 33.75” (85.73 cm)
Side Rail Height - Up (seat pan to rail top): 13.5” (34.3 cm)
Overall Chair Height, Low 54” (137 cm)
Overall Chair Height, High 62” (157 cm)
Seat Width 24” (61 cm)
Overall Width (rails up) 30” (76 cm)
Overall Width (rails down) 24” (61 cm)
Patient Surface Length (without “F” option) 72” (195 cm)
Side Rail Length 27.6” (70.1 cm)
Backrest Articulation Range 0° - 86°
Trendelenburg** 20° / 5° Reverse
Radiolucent Window (width x height) 20” X 25.5” (51 cm X 65 cm)
Wheelbase (length X width) 33” x 20” (84 cm x 51 cm)
